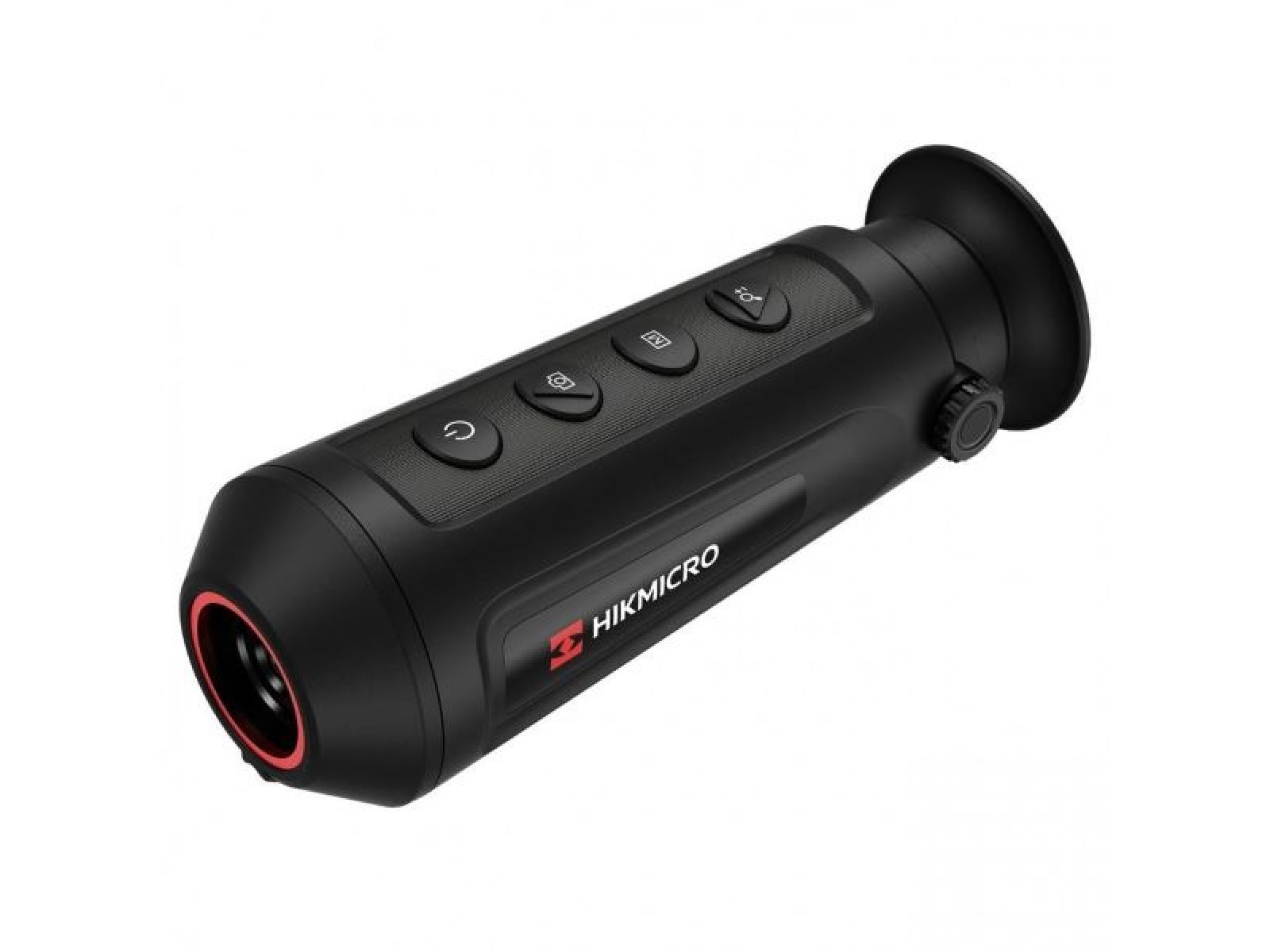

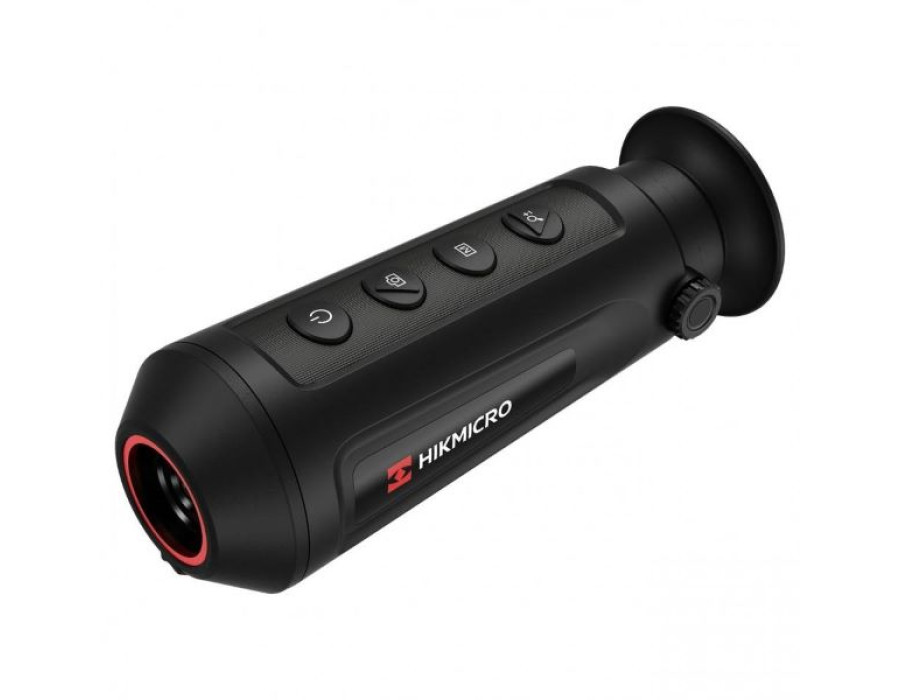

Thermal Monocular Hikmicro Lynx Pro LE10

The First Thermal Monocular Applied with Brand New UI Design

The new UI design enhances operation experience, quickly bringing up frequently used functions and not missing a single opportunity to spot your game.

Compact Size, Easy to Carry

Light Weight Design of 310 g/0.68 lb only.

Advanced VOx 12 μm Imaging Sensor

LYNX PRO series carries the new VOx 256×192/ 384×288 12 μm sensor (less than 35 mK), and large aperture lens, which gives a clear picture of the target even in complete darkness.

Long Detection Range

With the advanced imaging sensor and lens, detection range of a 1.7 m target can reach up to 1200m.

Video and Snapshot

Onboard 8 GB memory offers storage space for the snapshots and video clips. Recorded files can be downloaded when connected to PC via USB Port.

Hotspot for Mobile App

Integrated hotspot module makes Sight app as a second display. Users can use digital zoom, video recording and other features on their phones.

Specifications:

• Magnification: 1.00 - 8.00
• Field of View: 18.0° × 13.6°

• Protection level: IP67
• Weight: 260g

• Work Temperature/Humidity: od -20°С do +55°С
• Power: 5 VDC/2 A, 1.5 W, Typ USB-C
• Display: 0.2 inch, LCOS, 720 × 540
• Detection Rang: 458m
• Response waveban: 8µm ~ 14µm
• Palette:  Black hot, white hot, red hot, fusion

• Digital Zoom: 1×, 2×, 4×, 8×
• Max. Resolution: 256×192 px, 12 µm, VOx

• Storage: Built-in memory module (8 GB)
• Battery Type: Lithium battery
• Battery Operating Time: 8 hours continuous running with hotspot function off (@ 25 °C)
• Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
• Wifi: Yes
• NETD: Less than 35 mK (@ 25 °C),F# = 1.0
• Frame Frequency: 25 Hz
