Thermography Hikvision 25UF/W

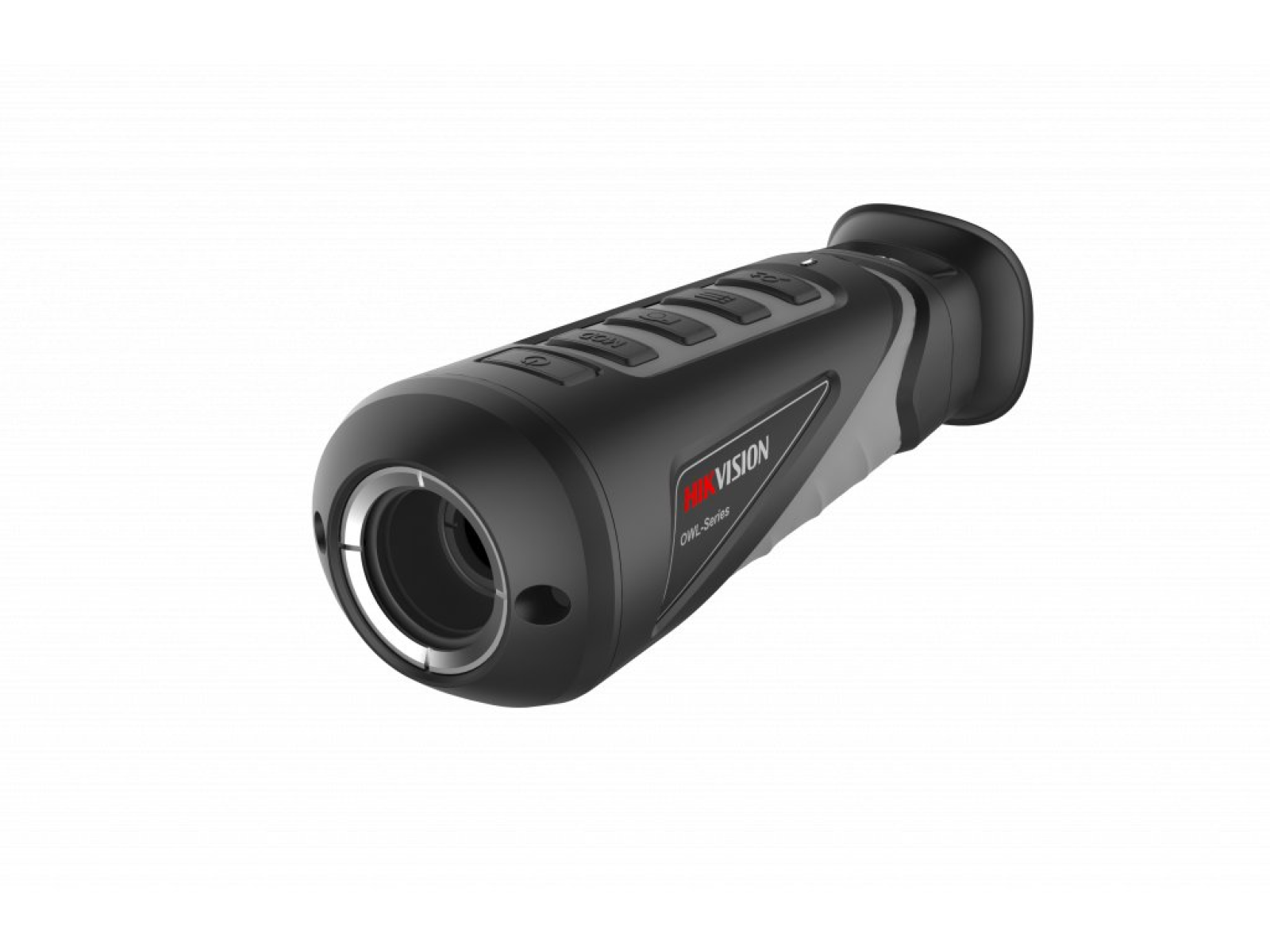

Hikvision DS-2TS03 handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1024×768 OLED display. It supports functions of observation, hot spot tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.

• 384 × 288 resolution, high sensitivity detector
• DDE (Digital Detail Enhancement) technique
• 3D DNR, adaptive AGC (Automatic Gain Control)
• 1024 × 768 resolution 0.39-inch OLED display
• Built-in rechargeable Li-ion battery
• Up to five hours continuous running (with GPS function and Wi-Fi hot spot function off)
• Small in size and light in weight

Application Scenarios:

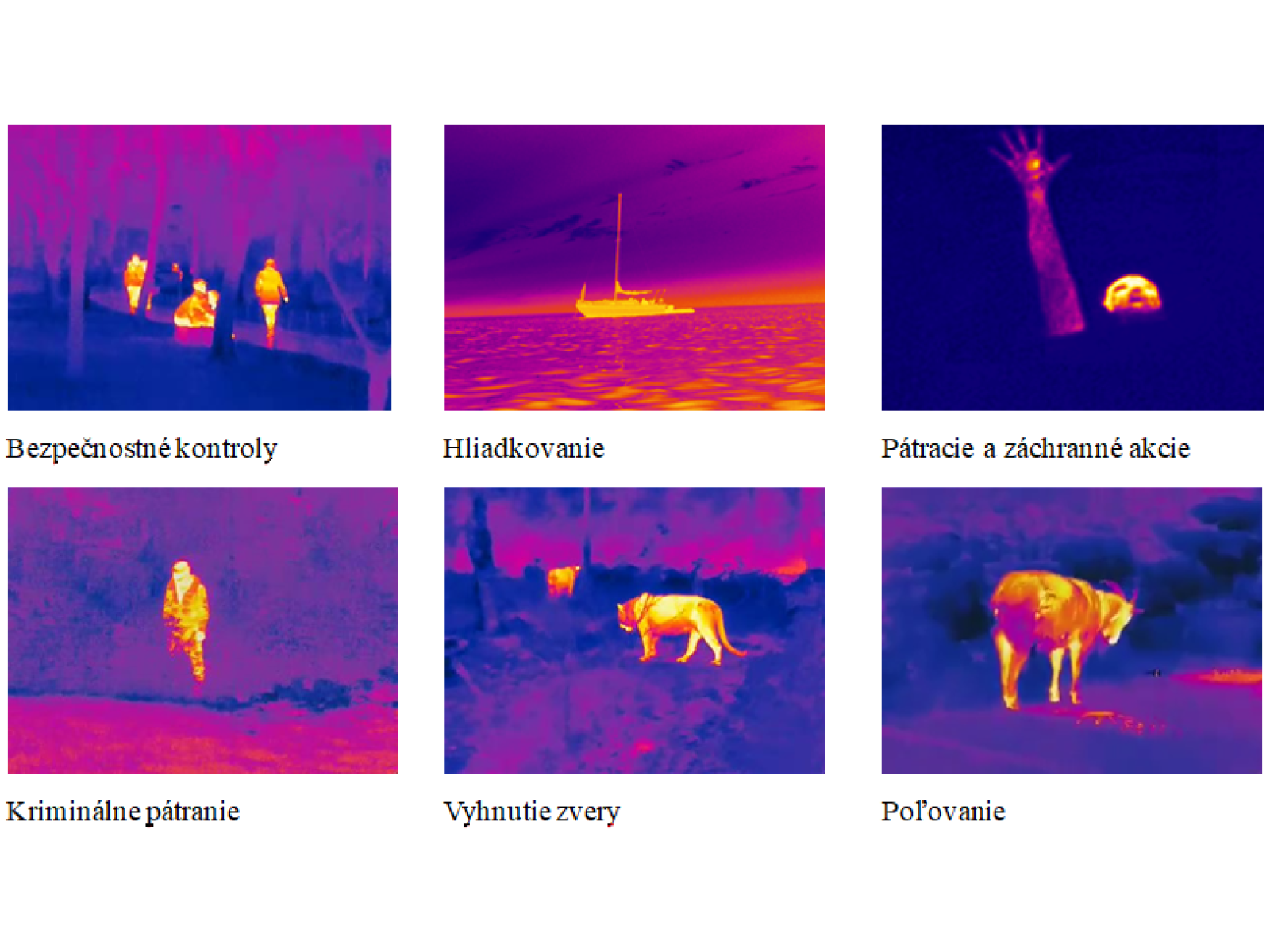

The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.,

Functions:

• Distance Measurement: The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
• Hot Spot Mark: The device detects and marks the hot spot of highest temperature.
• Wi-Fi Hot Spot: Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
• GPS Function: The device can be located with GPS system.
• Storage: Built-in memory module supports video recording/snapshot capturing.
• Digital Zoom: Device supports 2× digital zoom.
• LED light: LED light supplement makes the device a torch in the wild field.

Parameter:

Thermal Module:

• Image sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 384 × 288
• Response waveband: 8μm to 14μm
• NETD: < 40mk (@25°C,F#=1.0)
• Lens (focal length): 25mm
• MRAD: 0.68
• Field of View: 14.88° × 11.19°
• F number: 1.0

Image Display:

• Monitor: 0.39-inch, OLED, 1024 ×768
• Palettes: Black hot / White hot / Red hot

System:

• Hot Track: Support
• WIFI: Support
• Storage: Built-in memory module (16GB)
• Digital Zoom: 2×
• LED Light Supplement: Support
• Capture Snapshot: Support
• Record Video: Support on-board video / image recording
• GPS: Support

Power Supply:

• Battery Type: Lithium Battery
• Battery Operating Time: Up to five hours continuous running (with GPS function and Wi-Fi hot spot function off)
• Battery Capacity Display: Support

General:

• Power: 5V DC/2A, 2W
• Working Temperature: -30 °C to 55 °C (-22 °F to 131 °F)
• Protection level: IP67
• Drop Test Height: 2 m (6.56 feet)

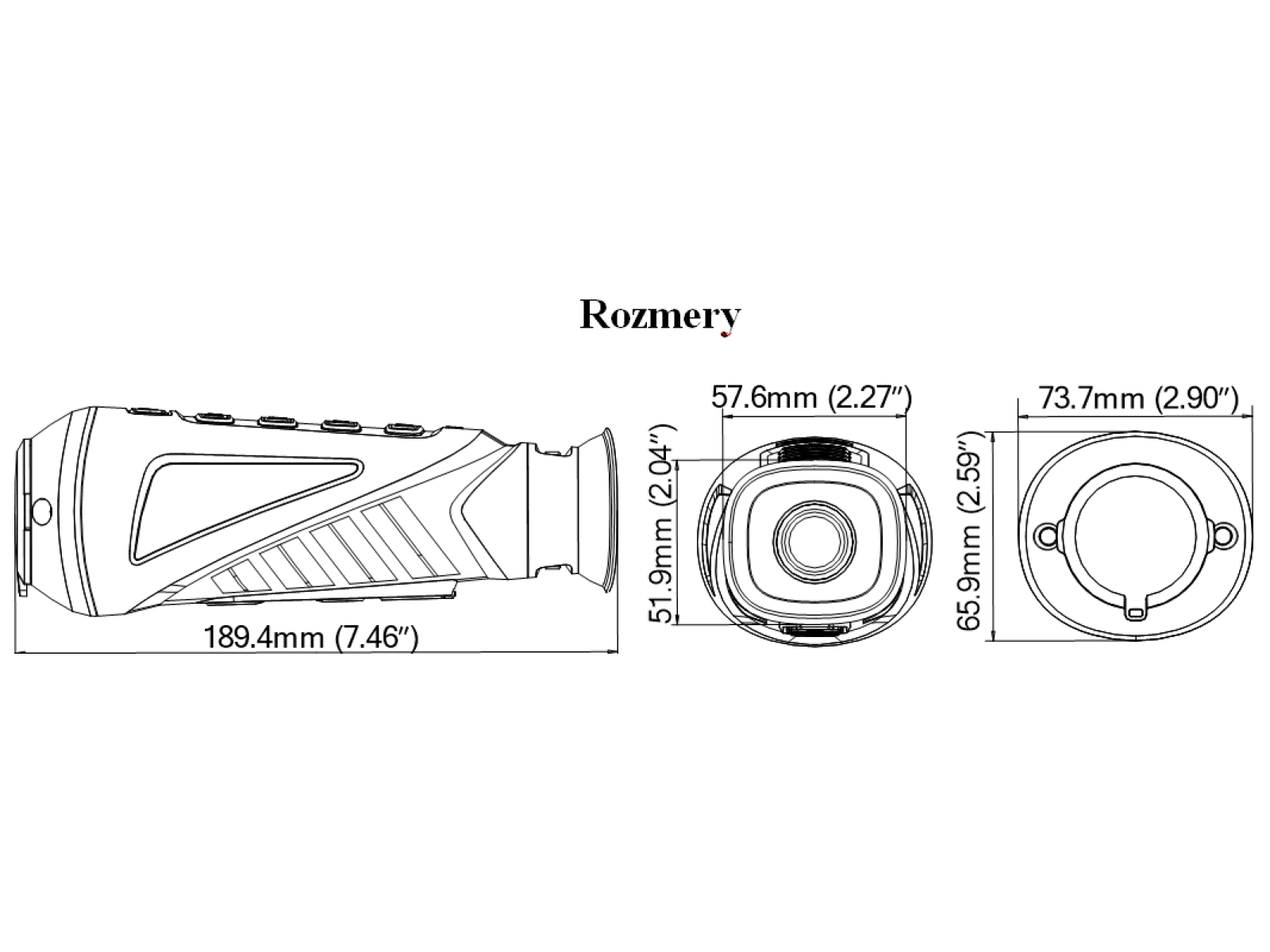

• Dimension (L x W x H): 185 mm × 74 mm × 66 mm (7.28 ″ × 2.91 ″ × 2.60 ″)
• Weight: 460 g (1.01 lb)
