Strike Industries Carbon Fiber Suppressor Alignment Rods

Strike Industries – Carbon Suppressor Alignment Rods (Set of 6)

Professional set of carbon alignment rods for quick visual verification of a suppressor's alignment with the bore. Helps prevent baffle strikes and other damage caused by improper mounting or poor thread/flash hider alignment. Carbon fiber is lightweight, very strong, and bore-friendly compared to steel rods.

• Safe alignment check: carbon is non-marring to the bore.
• Precision: straightness tolerance up to 0.003″ for reliable verification.
• Universal coverage: six rods cover common calibers from 5.56 mm up to .45.
• Lightweight: easy to carry in a range bag — quick checks at the range.

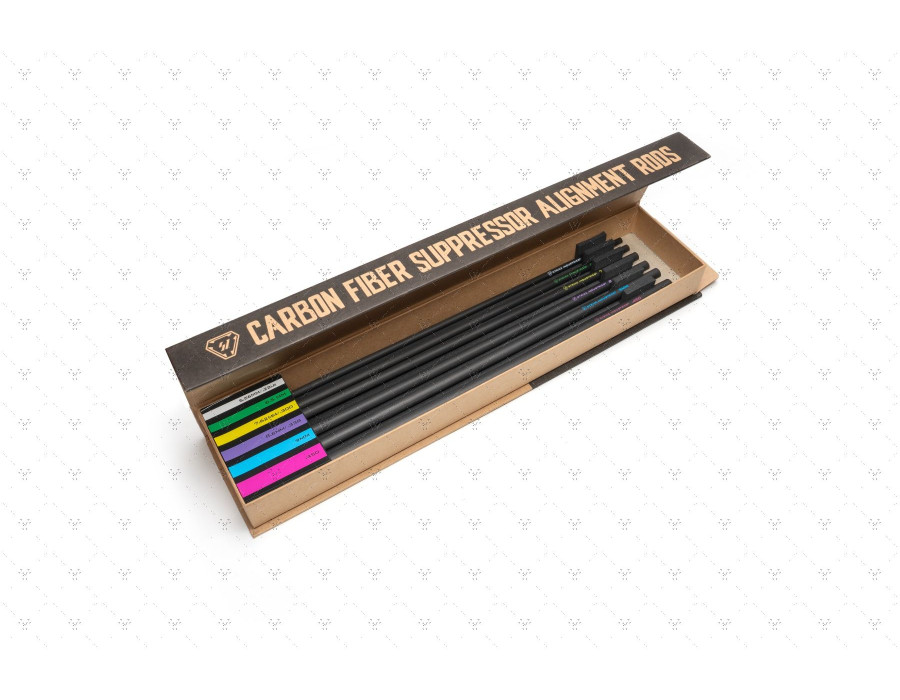

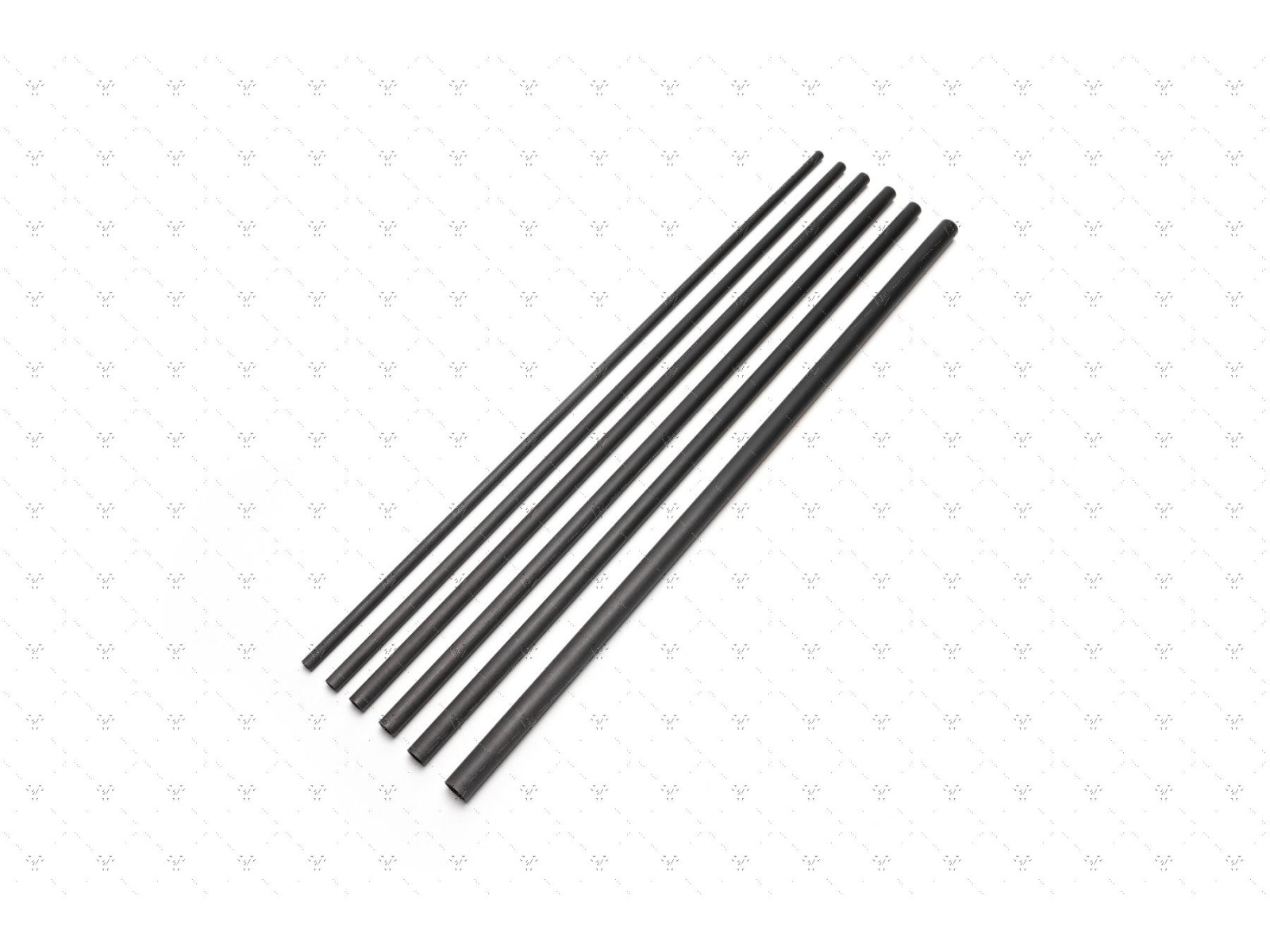

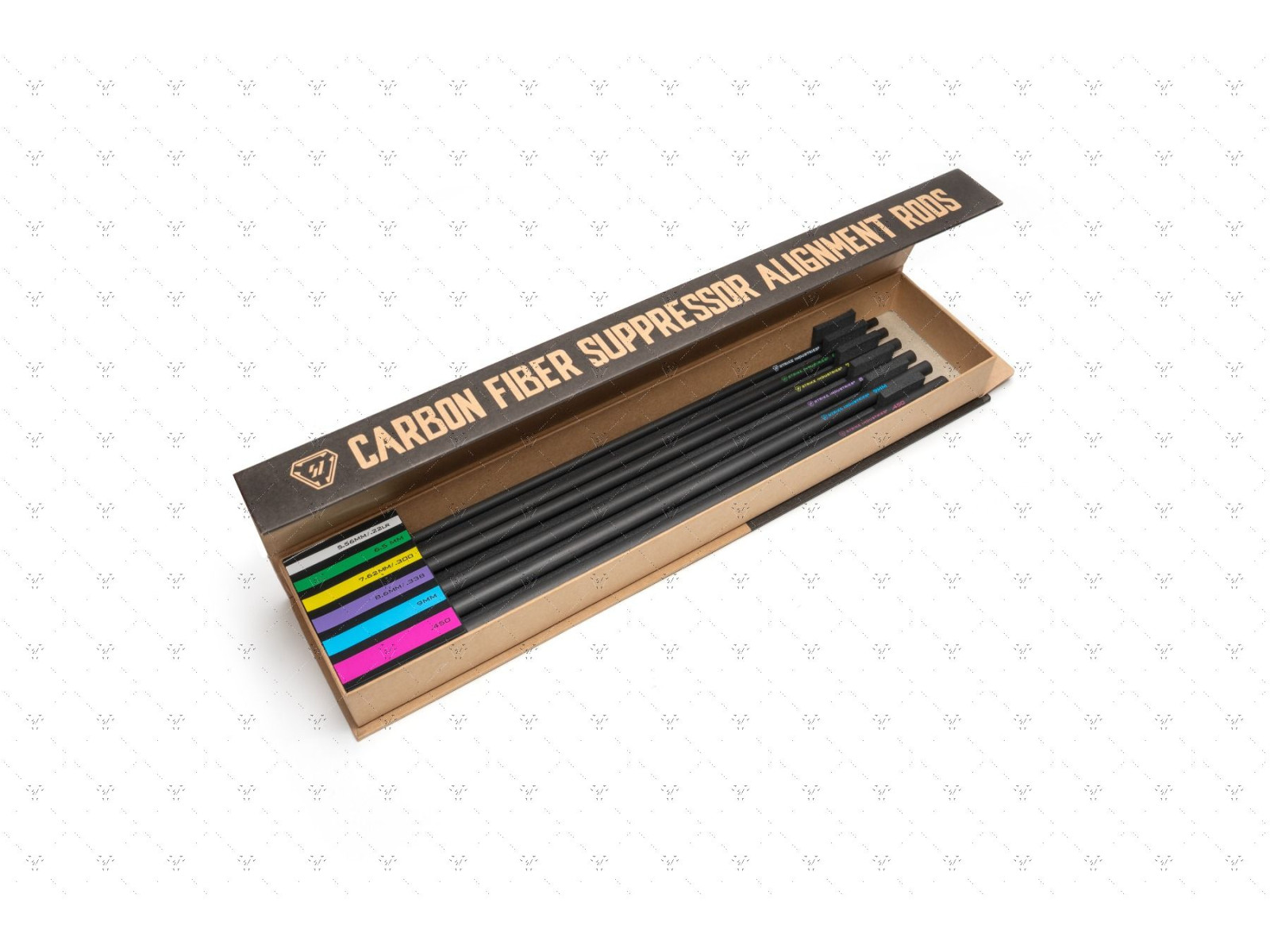

Package contents

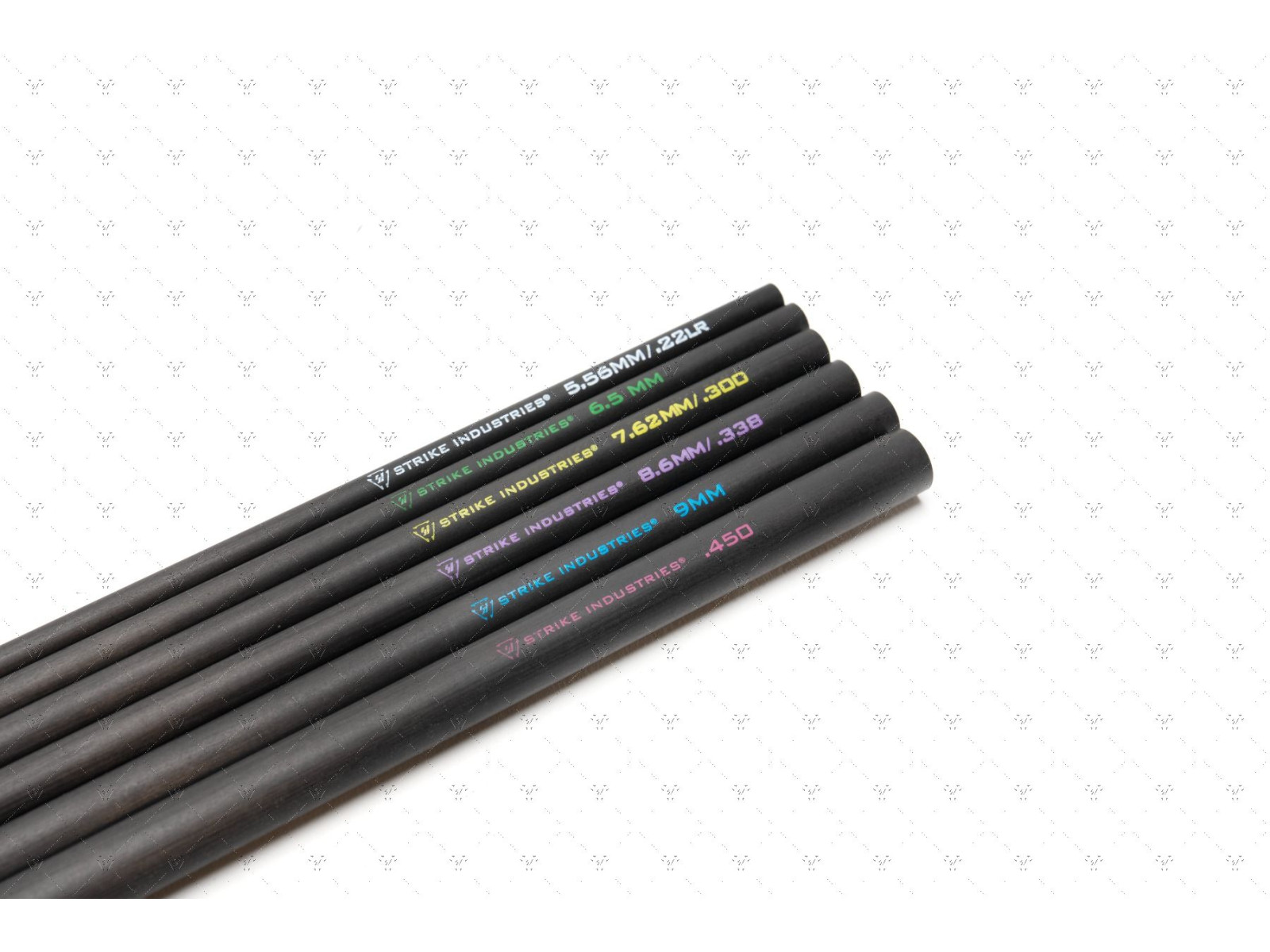

• 1× rod OD11.1 (for .45)
• 1× rod OD8.6 (for 9 mm / .338 / 8.6 mm)
• 1× rod OD8.2 (for 6.5 mm and similar)
• 1× rod OD7.5 (for 7.62 / .300 BLK)
• 1× rod OD6.3 (for .223 / 5.56 mm)
• 1× rod OD5.4 (slimmer profile as needed)
• 1× insert card with product information

Supported calibers (approx.)

.223 Rem / 5.56×45, 7.62 / .308 / .300 BLK, 6.5 mm, 8.6 mm / .338 Lapua, 9×19 mm, .45 ACP and related calibers.

Simple alignment check procedure

1. Safety first: clear the firearm — verify an empty chamber and remove the magazine.
2. Install the suppressor (or QD adapter / muzzle device) per the manufacturer's instructions.

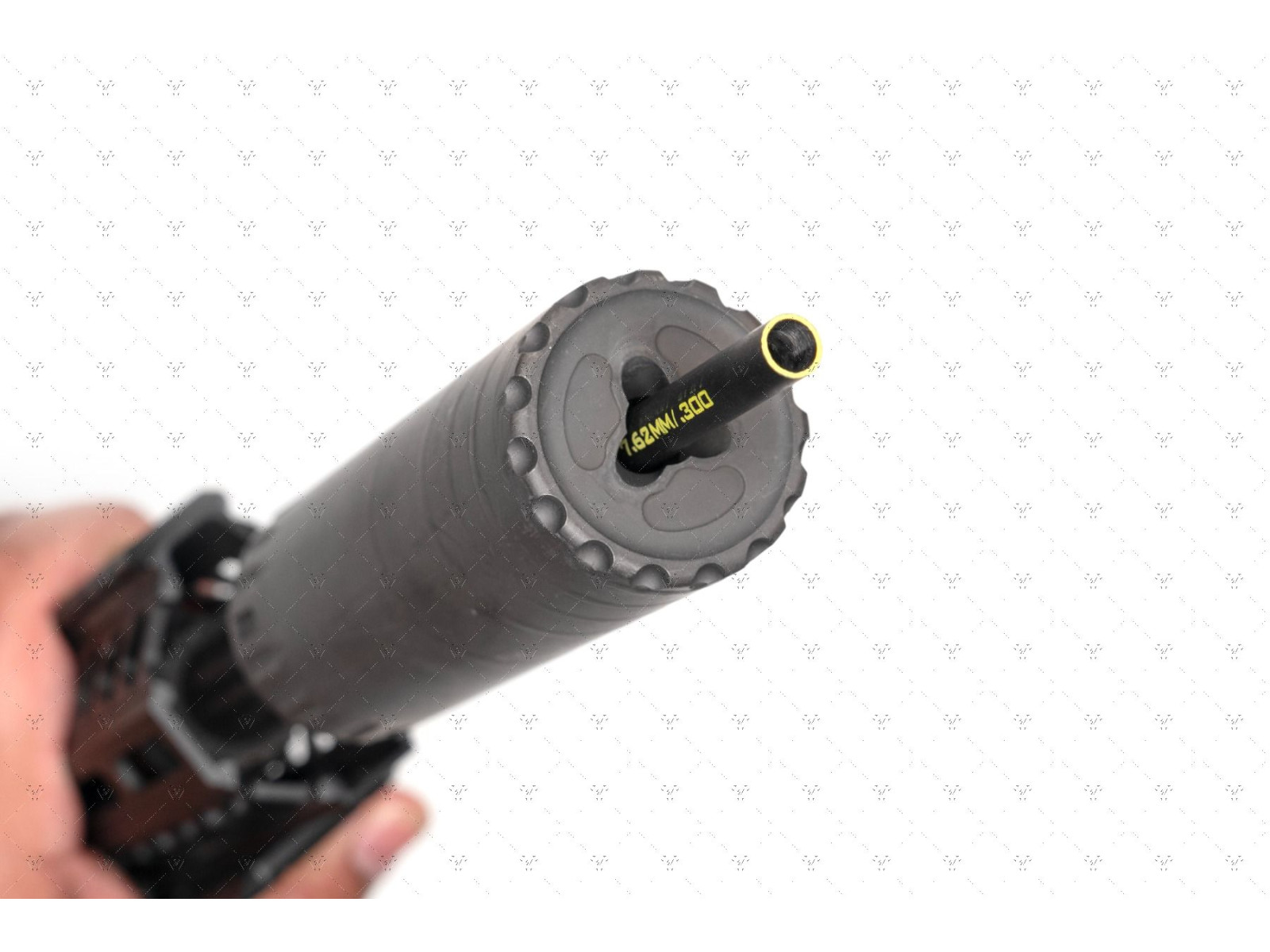

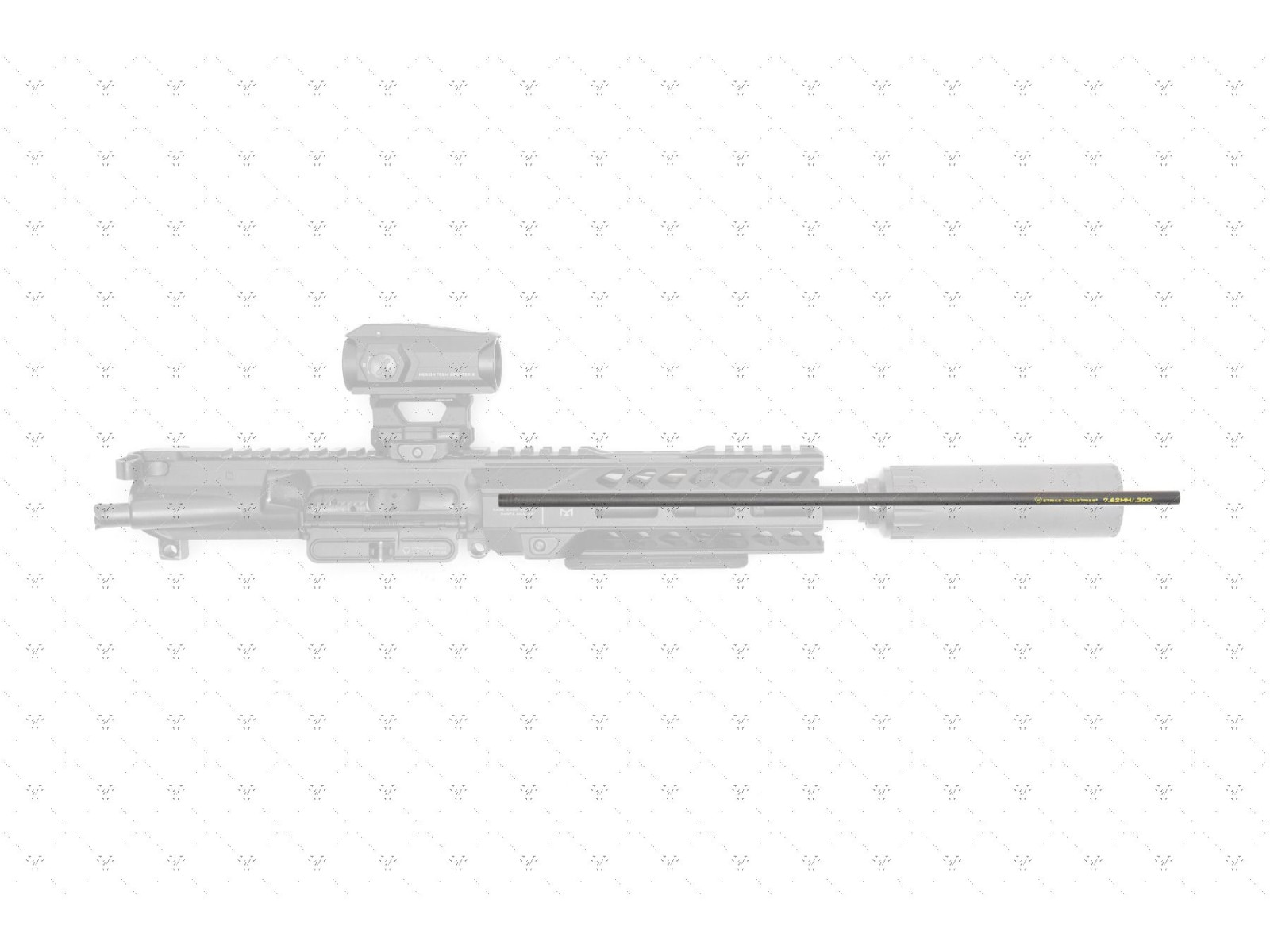

3. Select the rod matching the caliber and insert it from the muzzle through the suppressor.

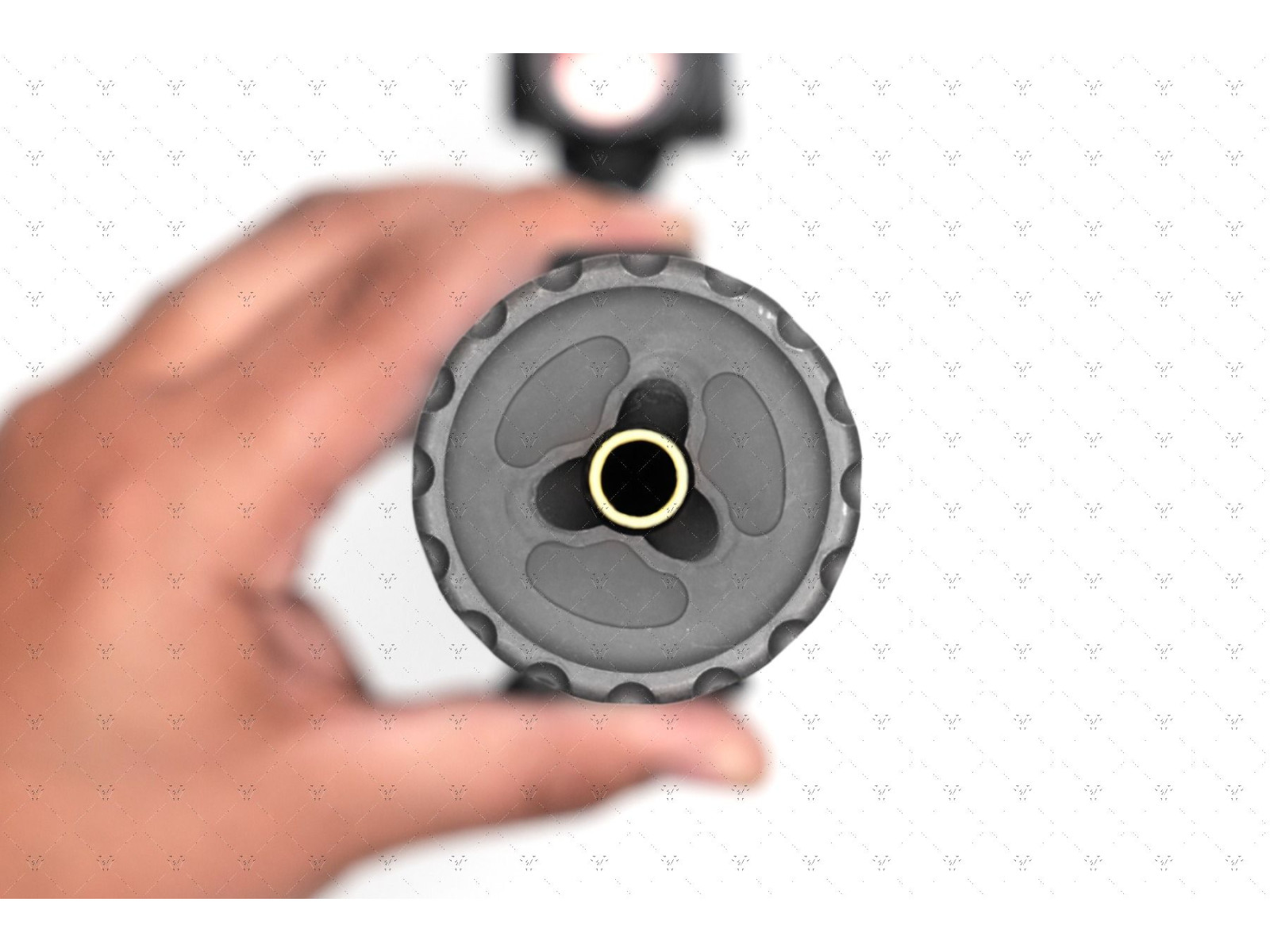

4. Visually confirm the rod is centered within the suppressor bore with no contact to the baffles.
5. If any contact is observed, inspect threads, shims, gas system, or mounting alignment for issues.

Technical specifications
