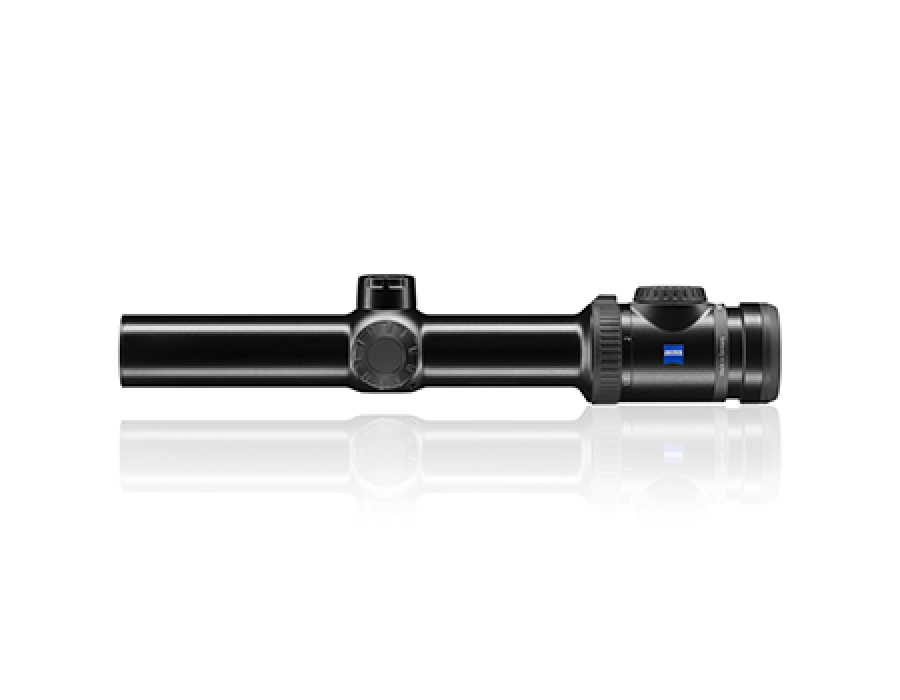

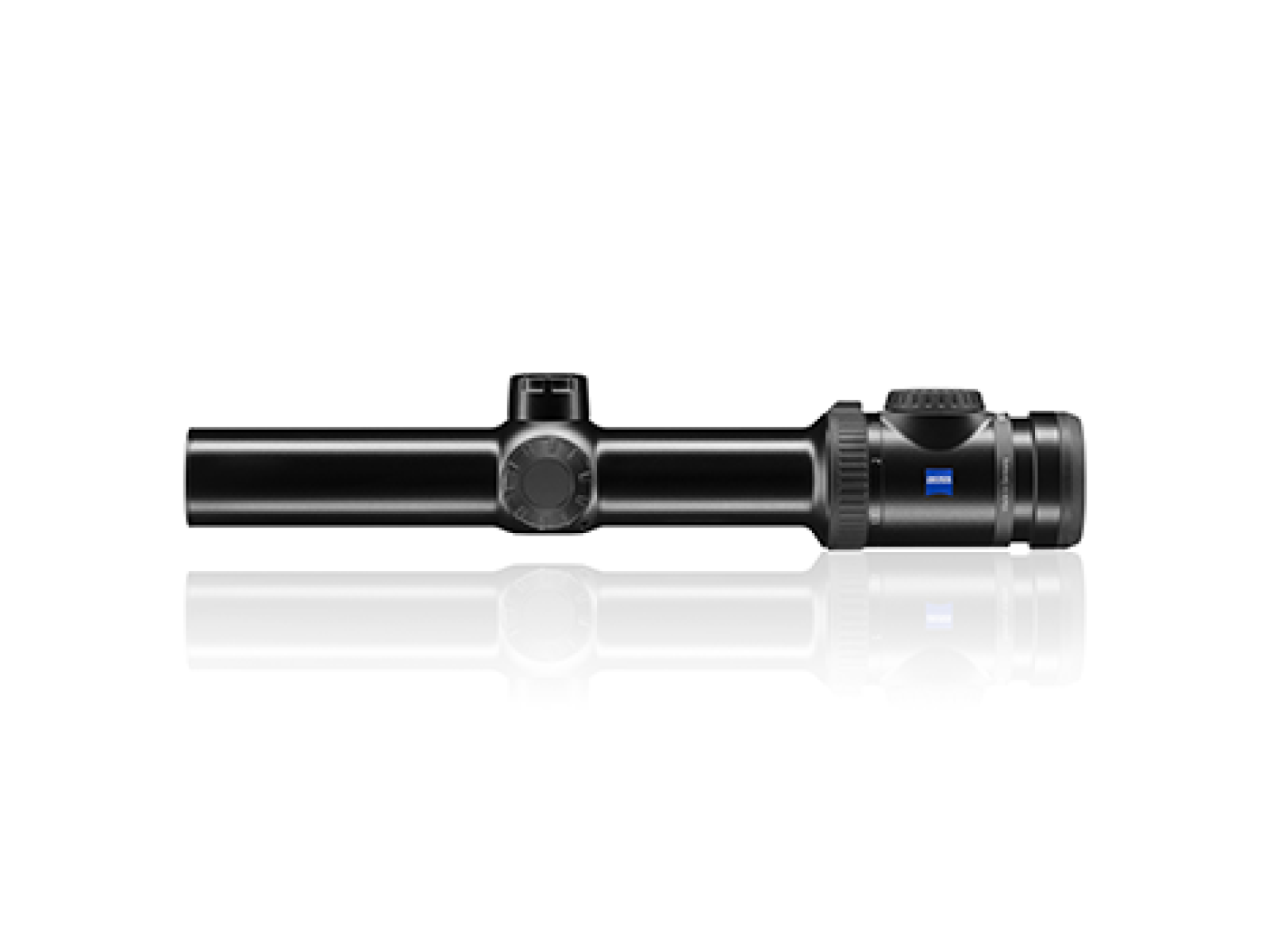

ZEISS VICTORY V8 1.1–8×30

Detailed description

NEW!

1.1x magnification is ideal for target detection with both eyes open and fast shots at short distances.

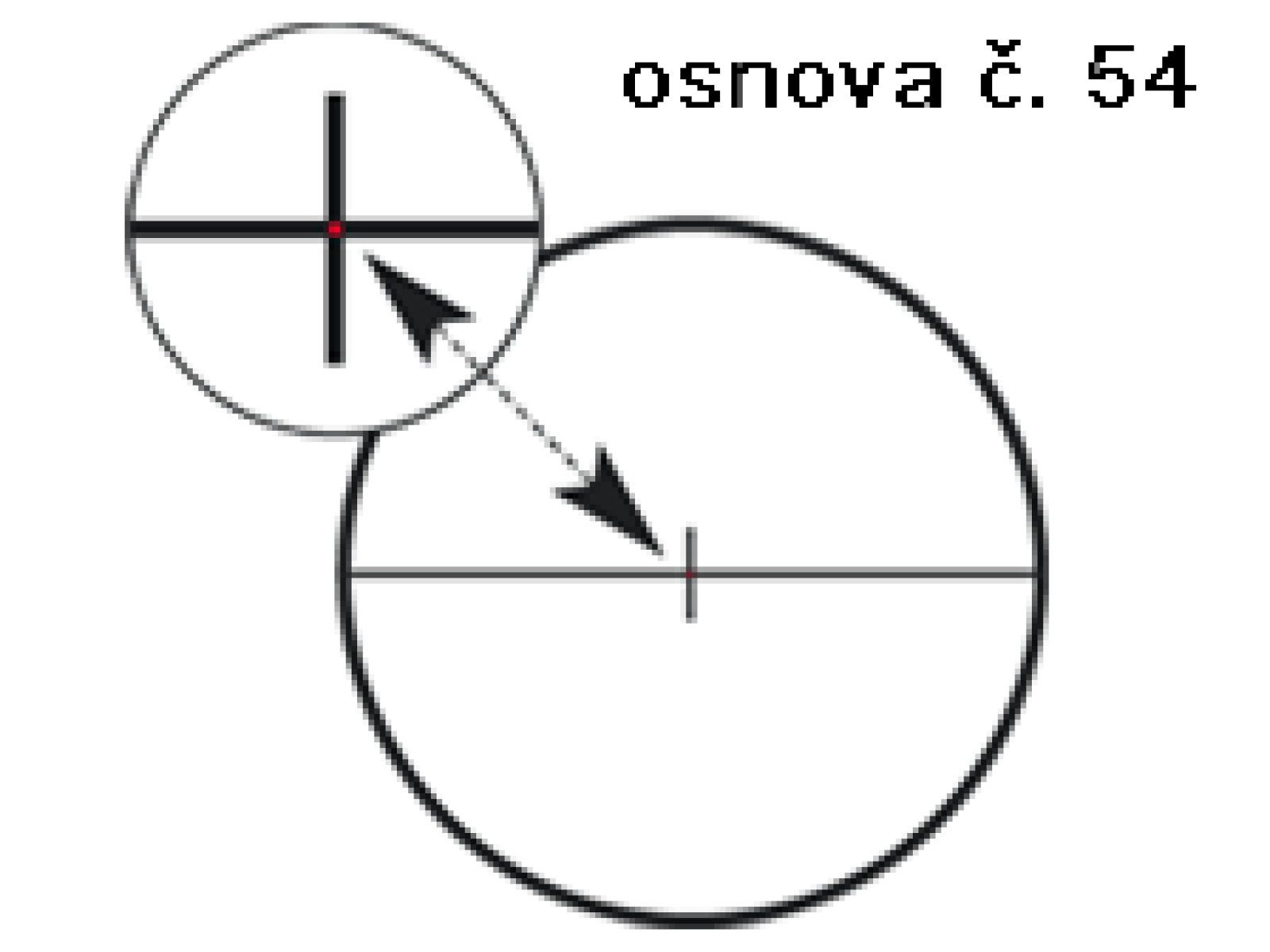

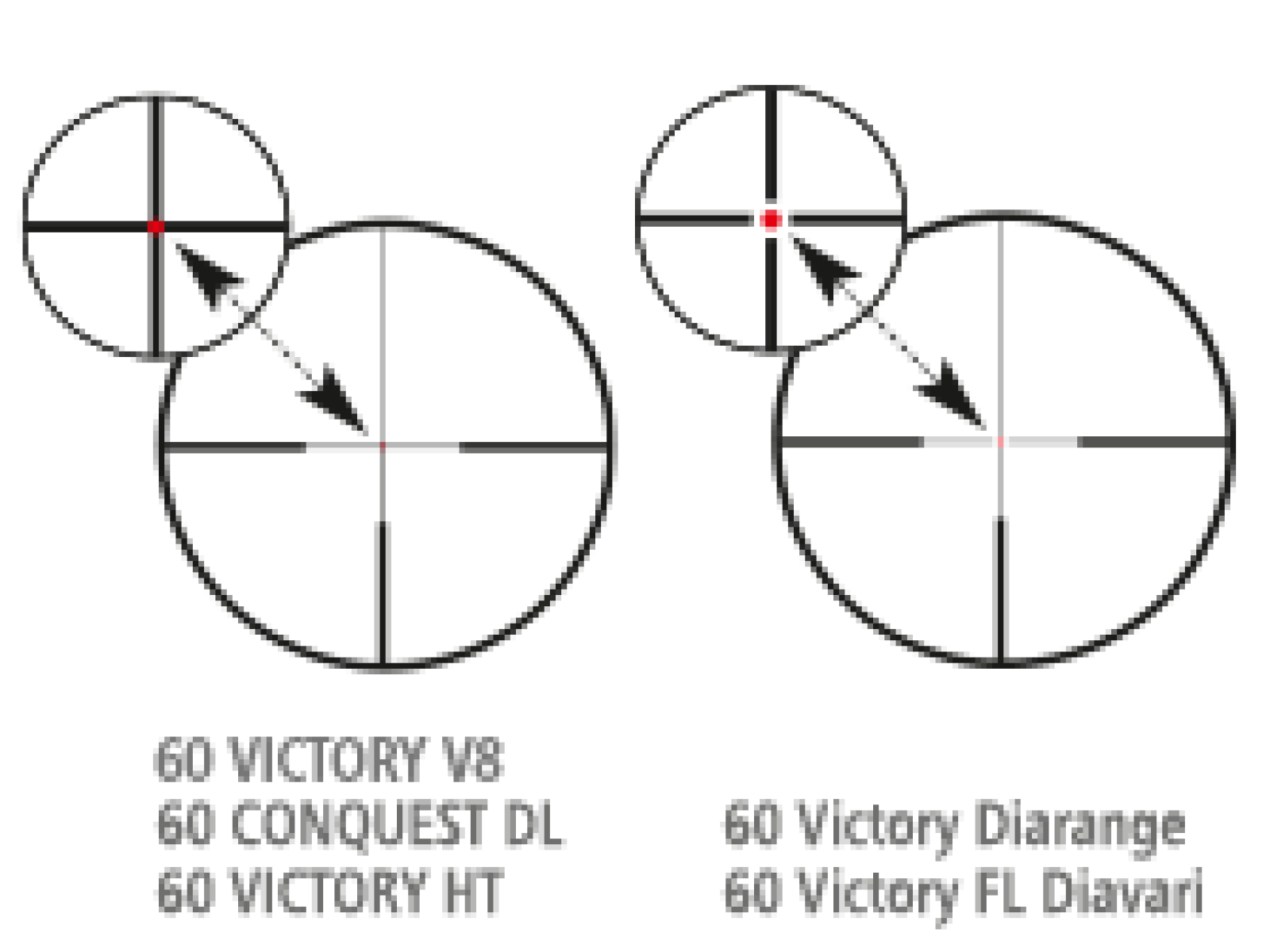

Illuminated reticle No. 60 or No. 54 in the second focal plane.

Magnification 1.1 – 8 x
Effective lens diameter 10.9 mm and 30 mm
Exit pupil diameter 9.9 mm and 3.8 mm
Twilight factor 3.5 – 15.5
Field of view at 100m 39.5 m – 5.3 m
Objective angle of view 22.2 deg – 3 deg
Diopter adjustment -3.5/+2
Eye relief 95 mm
Parallax -100 m

1 click at 100m = 1 cm
Tube diameter – 36 mm
Eyepiece tube diameter – 46 mm
Objective tube diameter – 36 mm

Waterproofing – 400 mbar/nitrogen filled/

Length 303 mm

Weight 600 g without rail, 620 g with rail

Price / rings: reticle 60, 54 2295.00 EUR

Price / rail: reticle 60, 54 2295.00 EUR

Price / rings: reticle 60, 54 + ASV LR-H 2570.00 EUR

Price / rail: reticle 60, 54 + ASV LR-H 2570.00 EUR

Price / rings: reticle 60, 54 + ASV LR-H + ASV LR-S 2845.00 EUR

Price / rail: reticle 60, 54 + ASV LR-H + ASV LR-S 2845.00 EUR
