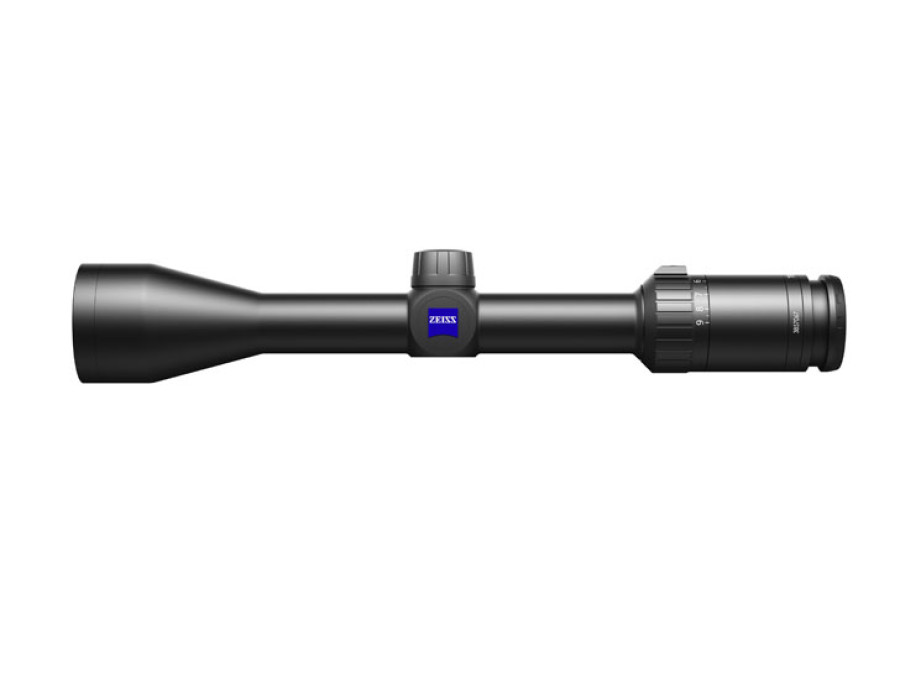

ZEISS TERRA 3X 2-7×32

Detailed description

A quality, simple and robust riflescope from ZEISS. The basic line with a non-illuminated Z-plex reticle /reticle No. 20/. The TERRA 3X line is characterized by the typical American 1-inch tube diameter /25.4 mm/ with 1/4 MOA click adjustment /0.7 cm/. A maximally durable, simple, affordable solution for harsh conditions and a suitable introduction to the world of ZEISS riflescopes.

Magnification 2 – 7 x
Effective lens diameter 24.4 mm and 32 mm
Exit pupil diameter 12.2 mm and 4.6 mm
Twilight factor 6.5 – 15.0
Field of view at 100m 15.5 m – 4.5 m
Objective angle of view 8.7 deg -2.5 deg
Diopter adjustment +2.5/- 2.5
Eye relief 90 mm
Parallax-free at – 100 m

Adjustment range (square) at 100 m – 180 cm
1 click at 100m = 0.7 cm
Tube diameter – 25.4 mm
Eyepiece tube diameter – 41 mm
Objective tube diameter – 39.5 mm

Waterproofing – 400 mbar

Length – 292 mm

Weight – 380 g

Operating temperature range -25/+50 °C
