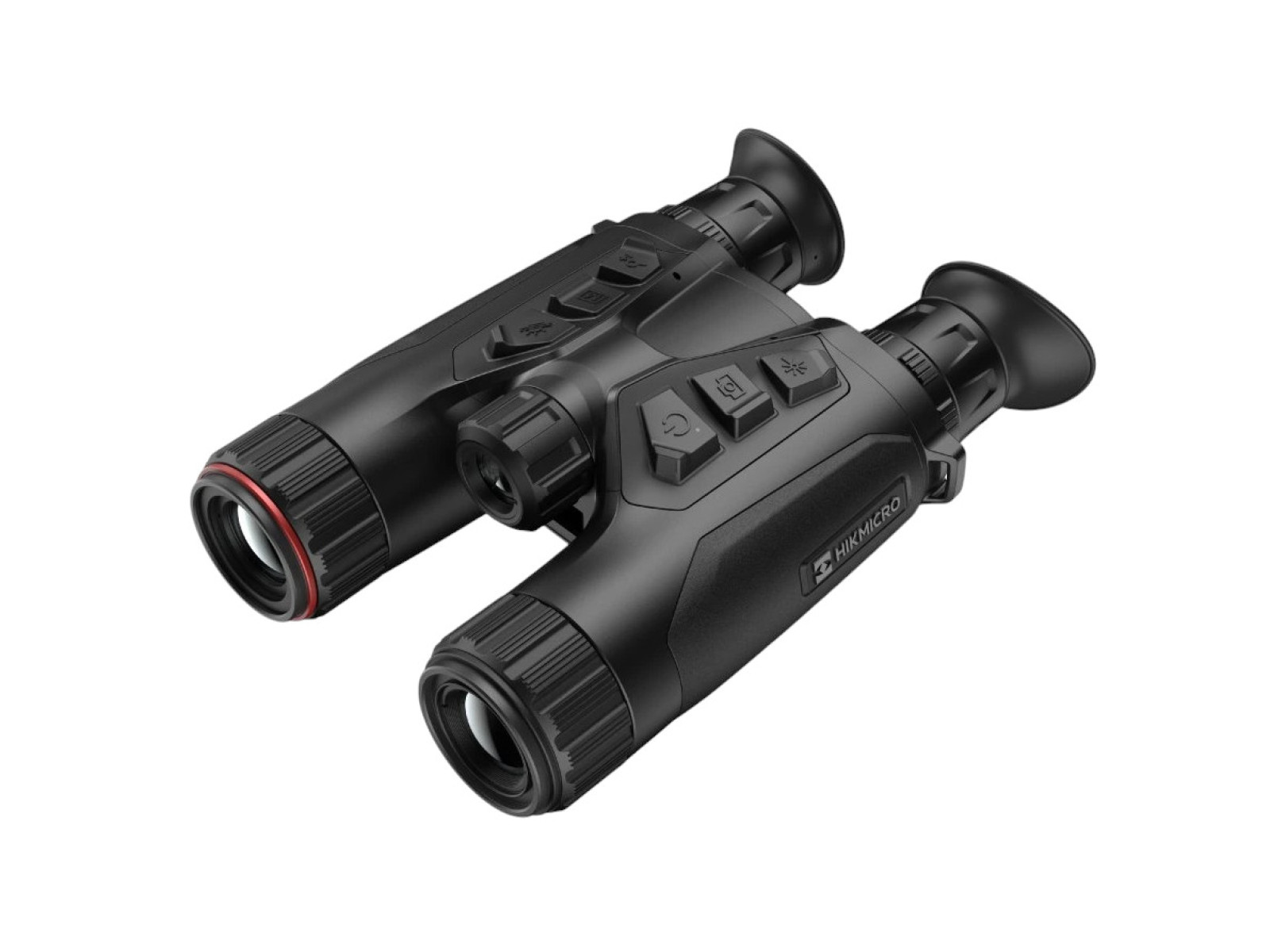

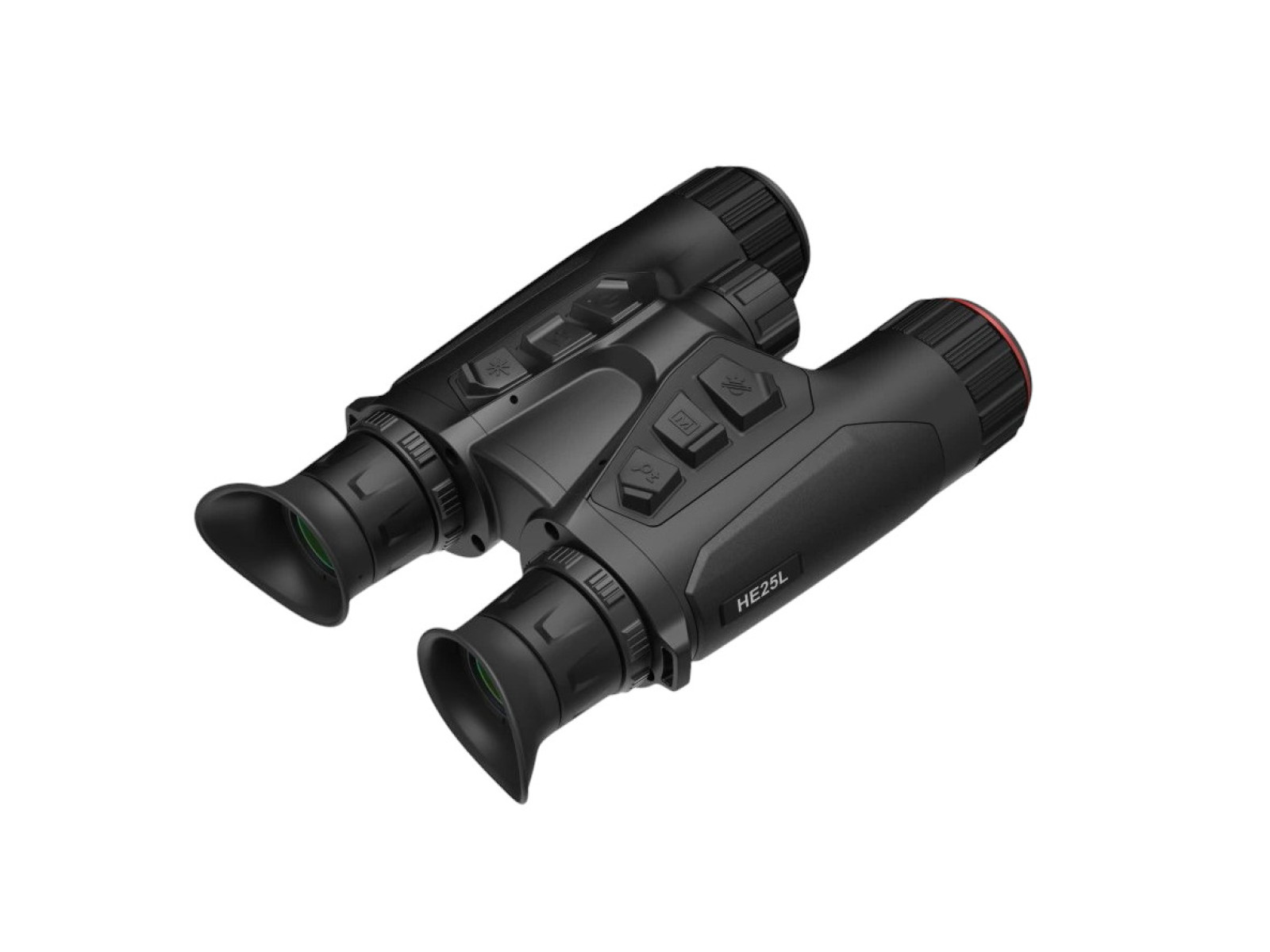

Thermovision binocular Hikmicro Habrok 4K HE25L

Hikmicro Habrok 4K HE25L Thermal Fusion Binocular

The Hikmicro Habrok 4K HE25L thermal fusion binoculars are a reliable companion for observation in various lighting conditions. With advanced features and powerful hardware, it offers excellent detection and high-resolution imaging capabilities. In thermal mode, this binocular provides magnification from 4.3x to 17.2x, allowing detailed observation even at long distances. With a wide field of view of 7.0° x 5.3°, it ensures clear monitoring of large areas. Its minimum focusing distance of 3.5 meters and detection range of up to 1200 meters make it an ideal tool for scouting and surveillance. In digital mode, the binocular offers magnification from 5.5x to 22x, ensuring comfortable viewing even in low-light conditions. With a field of view of 6.9° x 4.1° and detection capability up to 400 meters, it is perfect for night-time observation and tracking in dimly lit environments. Equipped with a 0.49-inch OLED display with a resolution of 1920 x 1080 px, it delivers sharp and clear images. Various color palettes such as black hot, white hot, red hot, Fusion, day, night, and auto allow the user to customize the display according to their needs. With features like FFC correction, brightness, saturation, and contrast adjustment, Zoom Pro, video recording, and photo capturing, this binocular offers a wide range of customization and recording options. The sensor resolution is 3840 x 2160 px.

Safety features include a laser rangefinder with a measurement accuracy of ±1 m and mounting capability for an adapter, ensuring precise and stable use.

The Habrok 4K HE25L binocular come with various accessories such as a neck strap, USB-C cable, tripod adapter, 4x rechargeable batteries, charger, cleaning cloth, and a user manual, providing everything needed for immediate use.

Product Specifications:

Thermal Mode:

• Magnification: 4.3 - 17.2x
• Field of view: 7.0° x 5.3°
• Minimum focusing distance: 3.5 m
• Focal length: 25 mm
• Detection range: 1200 m
• Focusing: Focus ring
• Sensitivity: NETD < 35 mK
• Objective lens diameter: 35 mm (F1.0 focal length)
• Response wavelength range: 8 μm - 14 μm
• Refresh rate: 50 Hz
• Sensor resolution: 256 x 192 px

Digital Mode:

• Magnification: 5.5 - 22x
• Field of view: 6.9° x 4.1°
• Focal length: 60 mm
• Focusing: Focus ring
• Night detection range: 400 m
• Minimum illumination: 0.001 lux @ (F1.0, AGC ON)
• Minimum focusing distance: 3 m
• Smart IR: Yes
• Sensor resolution: 3840 x 2160 px
• Image sensor: 1.88'' CMOS with progressive scanning

Observation Parameters:

• Digital zoom: 4x
• Display type: 0.49-inch OLED
• Display resolution: 1920 x 1080 px
• Interpupillary distance: 60 - 70 mm
• Color palettes: Black hot, White hot, Red hot, Fusion, Day, Night, Auto
• FFC correction: Yes
• Modes: Automatic, Manual, External correction
• Exit pupil diameter: 8 mm
• Eye relief: 15 mm
• Diopter adjustment: -5 to +3 dpt
• Brightness adjustment: Yes
• Saturation settings: Cold, Warm
• Contrast adjustment: Yes
• Zoom Pro function: Yes
• Video recording: Yes
• Photo capturing: Yes
• Standby mode: Yes
• Audio recording: Yes
• Built-in memory: Yes
• Memory capacity: 64 GB
• Picture-in-Picture (PiP) function: Yes
• Hotspot function: Yes
• Hot Track function: Yes
• Wi-Fi function: Yes
• Digital magnetic compass: Yes
• GPS: Yes

Power Supply:

• Battery type: 2x rechargeable lithium-ion 18650 batteries (replaceable)
• Operating time: Up to 8 hours
• Power input: USB-C, 5V DC, 2A

Laser Rangefinder:

• Safety class: 1
• Wavelength: 850 nm
• Measurement range: 1000 m
• Measurement accuracy: ±1 m
• Minimum measurement range: 10 m

IR Illuminator:

• Wavelength: 850 nm
• Adjustable beam angle: 7.6° - 11.5°

Mounting Options:

• Mounting compatibility: Yes
• Thread type: 1/4"-20 UNC

Durability and Environmental Resistance:

• Protection rating: IP67
• Operating temperature: -30 ℃ to +55 ℃
• Dimensions: 138 x 68 x 217 mm
• Weight: 800 g

Package Contents:

• Hikmicro Habrok 4K HE25L Thermal Fusion Binocular
• Neck strap
• USB-C cable
• Tripod adapter
• 4x rechargeable batteries
• Battery charger
• Cleaning cloth
• Carrying case
• User manual
