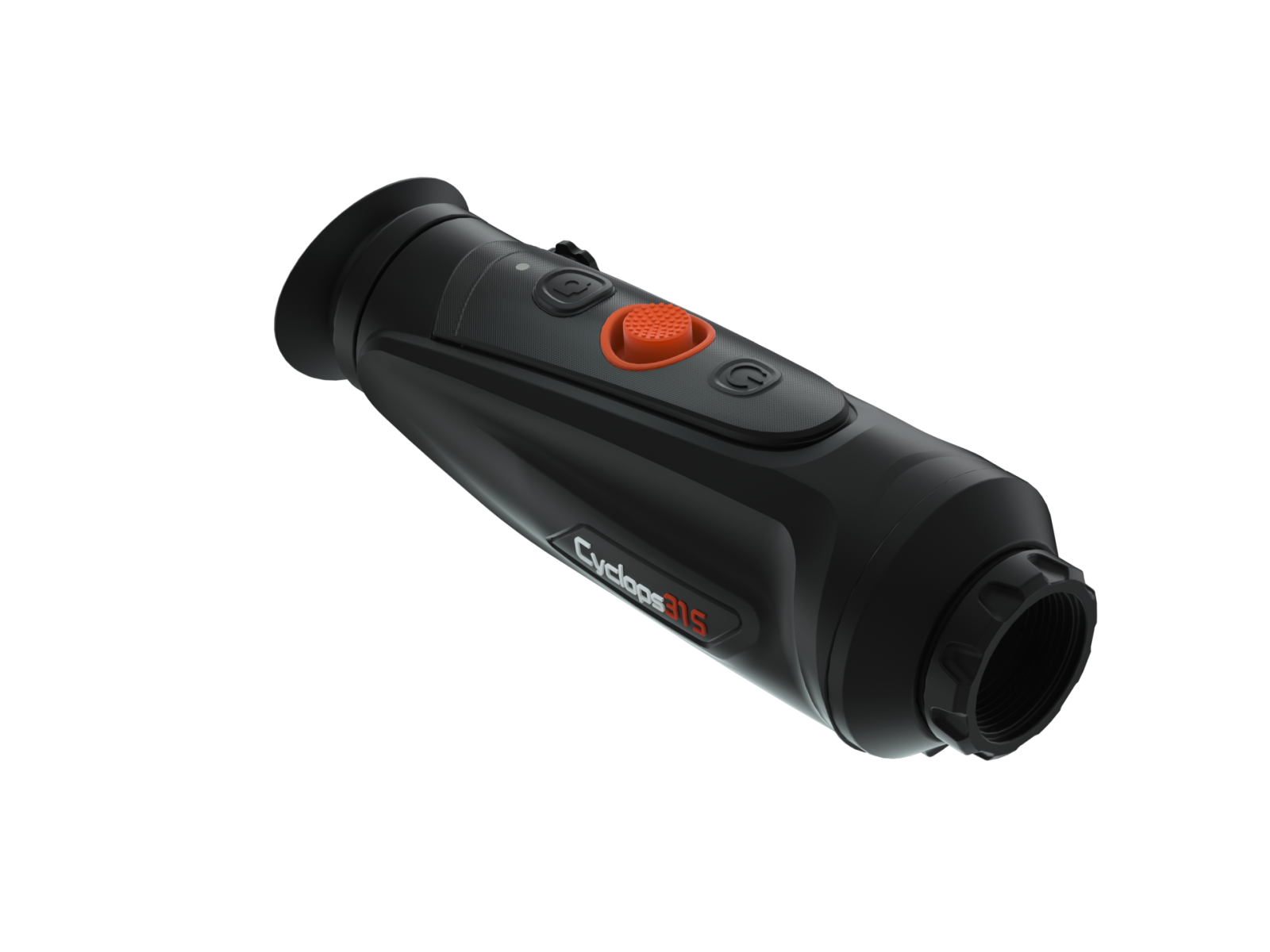

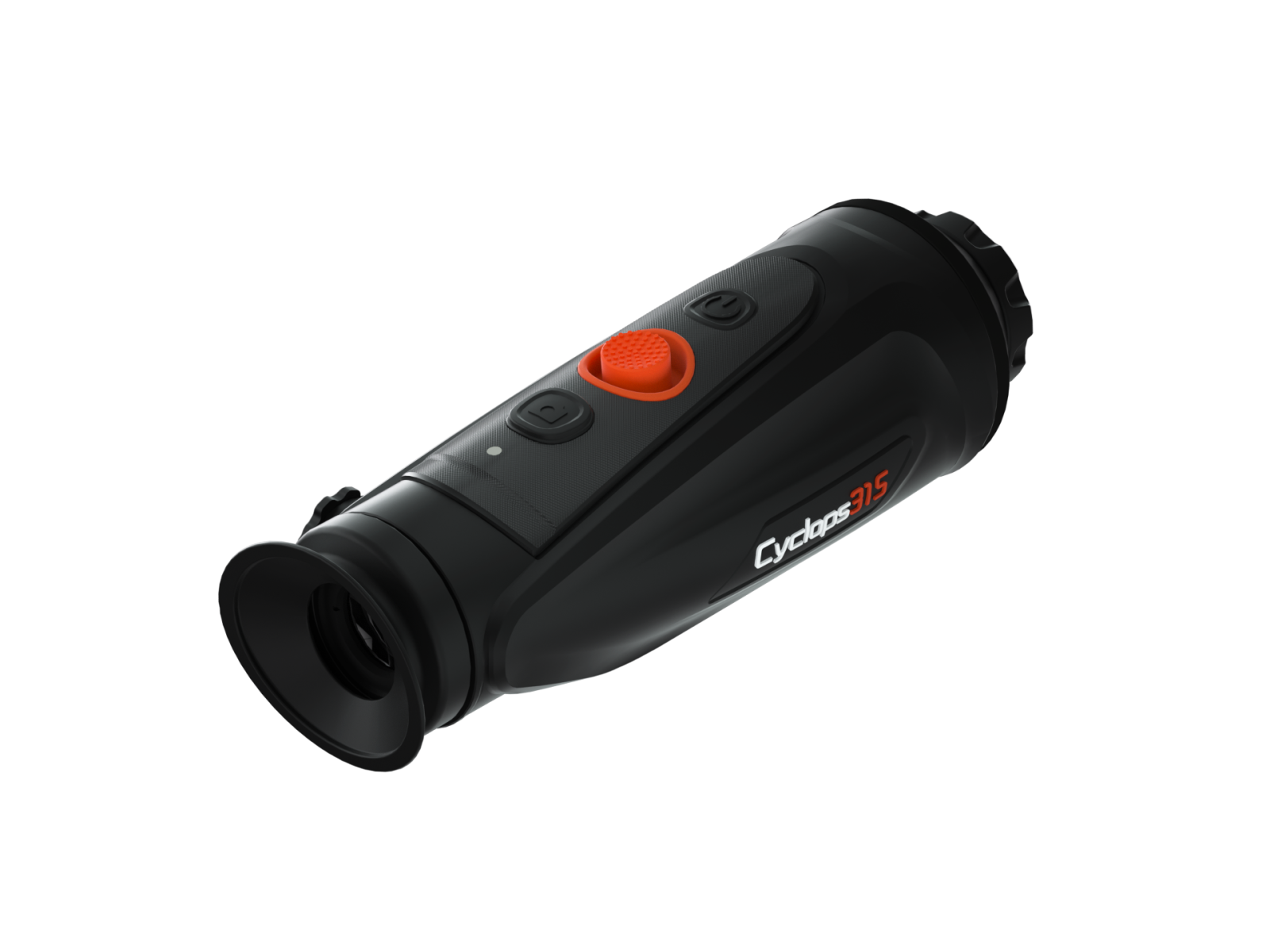

ThermTec Cyclops CP315

Manufacturer            ThermTec

Thermal Monocular Series ThermEye Cyclops

Made in         China

In production since  No

Warranty        1 year

SKU     CP315

Variable magnification        No

Magnification.          1x

Minimal magnification.       1x

Maximum magnification.    1x

Diopter range           -5/+5

Lens diameter.         15mm

Field of view...           304m/1000m

Field of view (deg.). 17.5°

Min. field of view...   304m/1000m

Max. field of view...  304m/1000m

Eye relief.      40mm

Close focus. 0m

Lens aperture            F 0.9

Range of detection.  375m

Optical zoom No

Thermal sensor type           VOx Uncooled

Thermal sensor resolution 384x288

Thermal sensor pixel count.          0.11MP

Pixel pitch.     12μm

NETD. 40mK

Refresh Rate.            50Hz

Calibration mode     No

Temperature sensitivity.     40mK

Display type OLED

Screen Resolution    1024×768

Display pixel count. 0.79MP

Image Capture          Yes

Image Resolution     No

Video recording        Yes

Video resolution       No

Video output Yes

Length.           67mm

Width. 63mm

Height.           190mm

Weight.           470g

Material         No

Color   Black

Working temperature range          -20 ° / + 55° C

Power Supply            Li-ion

Battery life.   12h

Filled with      No

Focusing system      Manual Focus

Diopter setting position      No

Waterproof   Yes

Fogproof       Yes

Auto Turn-Off           No

Tripod adaptable      No

Compass       No

Build in rangefinder No

Image stabilizer        No

Automatic Brightness Control       No
