Termovision PARD Leopard 480 LRF 35mm

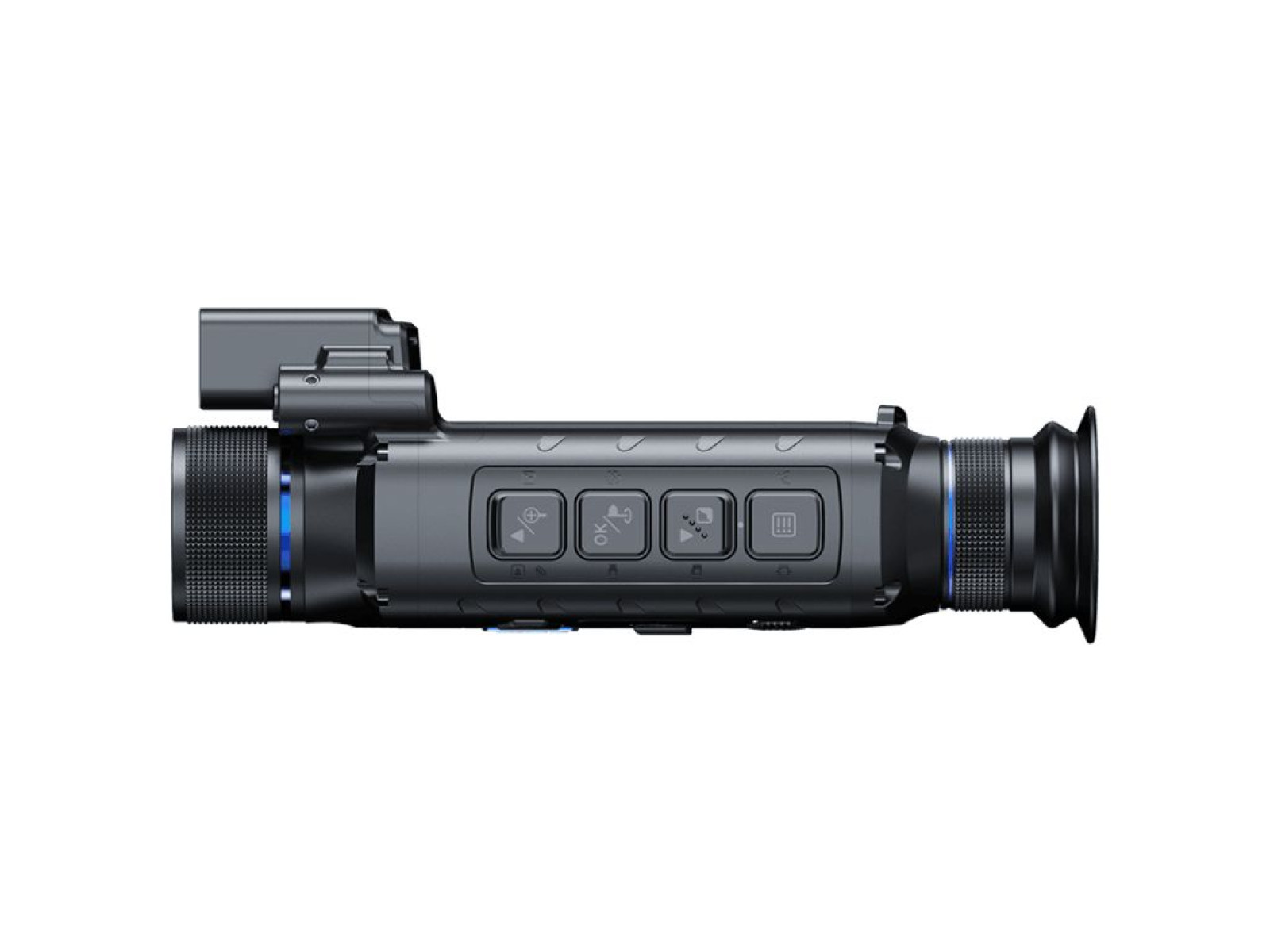

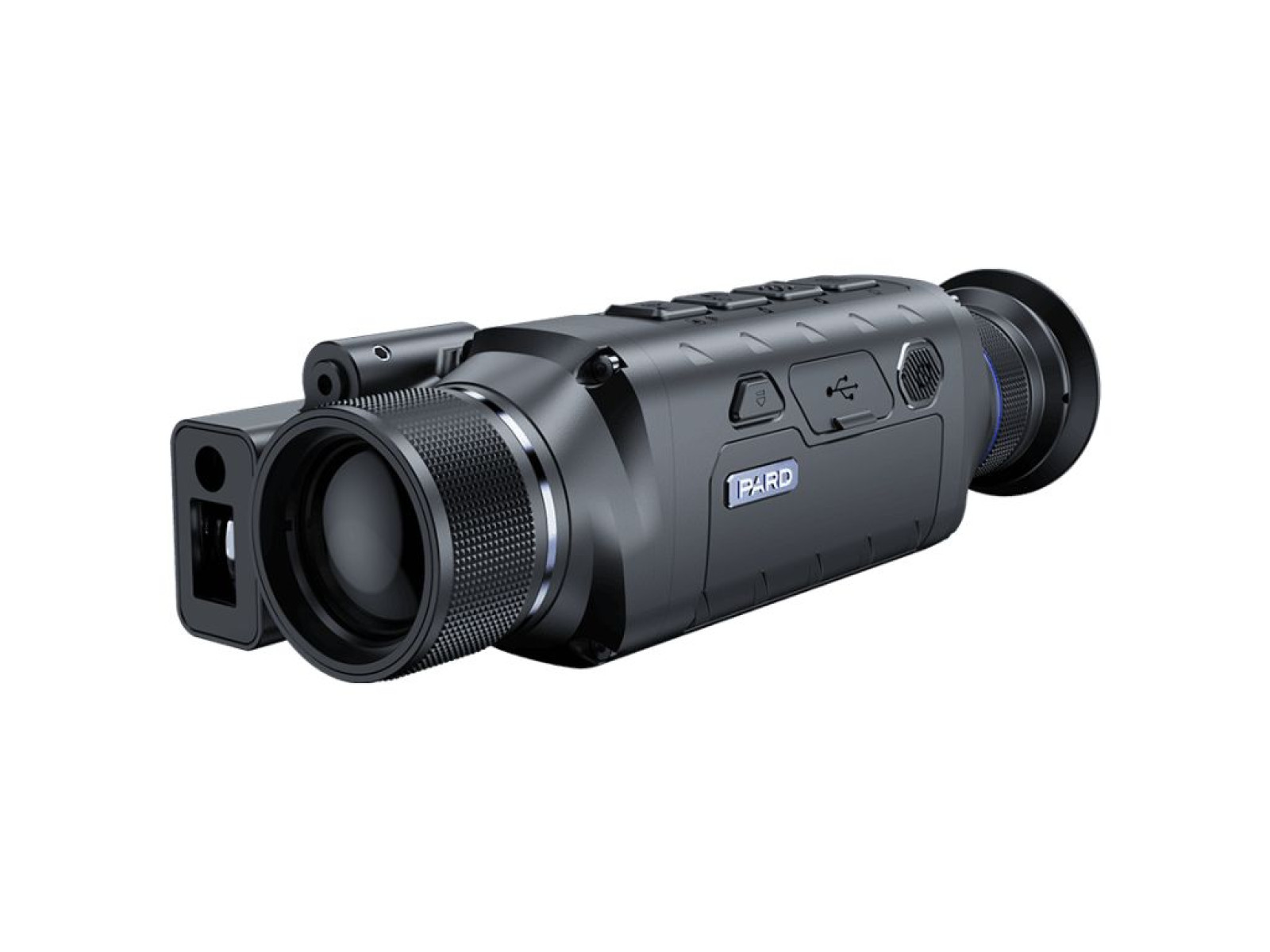

Pard Leopard 480 – Monocular Thermal Vision

The Pard Leopard 480 is equipped with a high-quality sensor featuring a 480 × 360 px resolution, 12 μm pixel size, and NETD ≤ 20 mK for exceptional thermal sensitivity. Its 35 mm lens ensures a remarkable experience for hunting and property surveillance.

The AMOLED display with 1920 × 1080 px resolution guarantees a clear image, even in challenging conditions like darkness, fog, rain, snow, smoke, and dust. Thanks to its advanced thermal detection technology, it can detect targets at distances of up to 1800 m.

With a weight of less than 360 g, the Leopard 480 is lightweight and compact, featuring an integrated laser rangefinder with a range of up to 1000 m for precise distance measurement.

Specifications:

• Sensor Type: Uncooled VOx (Vanadium Oxide)
• Resolution: 480 × 360 px
• Pixel Size: 12 × 12 μm
• NETD: ≤20 mK (0.02℃)
• Frame Rate: 50 Hz
• Detection Range: 1200 m / 1800 m
• Lens: 35 mm
• Optical Magnification: 2x / 2.8x
• Digital Zoom: 2x / 4x / 6x / 8x
• Field of View (Horizontal): 13.1° / 9.4°
• Field of View (Vertical): 9.9° / 7.1°
• Field of View (Diagonal): 16.4° / 11.7°
• Eye Relief: 20 mm
• Diopter Adjustment: -5 to +5 D

Display & Imaging:

• Display Type: AMOLED
• Resolution: 1920 × 1080 px
• Scene Modes: Urban / Rain / Forest
• Imaging Modes: WT-HOT / BK-HOT / EDGE / RD-HOT / IN-HOT / SKY
• Photo Resolution: 1440 × 1080 px
• Photo Format: .JPG
• Video Resolution: 1440 × 1080 px
• Video Format: .MP4
• Storage: Micro SD card (up to 128 GB)

Features:

• Image Engine: Pard IREA
• Laser Rangefinder Range: 1000 m / 1200 yd
• Picture-in-Picture (PIP): Yes
• Gyroscope: Yes
• Loop Recording: Yes
• Hot Track: Yes
• Electronic Compass: Yes
• Shutter Type: Mechanical
• Microphone: Yes
• Firmware Upgradeable: Yes
• USB Type-C: Yes
• HDMI Output: Yes
• WiFi Connectivity: Yes
• Supported Apps: PardVision2

Power & Durability:

• Battery Type: Lithium-Ion 18650 × 1
• Output Voltage: 3.7V
• Battery Life: ≤6 hours
• External Power Supply: USB Type-C
• Protection Rating: IP67
• Operating Temperature: -30°C to +55°C (-22°F to +131°F)
• Housing Material: Aluminum alloy + composite
• Eyepiece: Multi-layer glass lens

Dimensions & Weight:

• Product Size (with LRF): 169 × 58 × 48 mm
• Weight (with LRF & battery): 360 g
