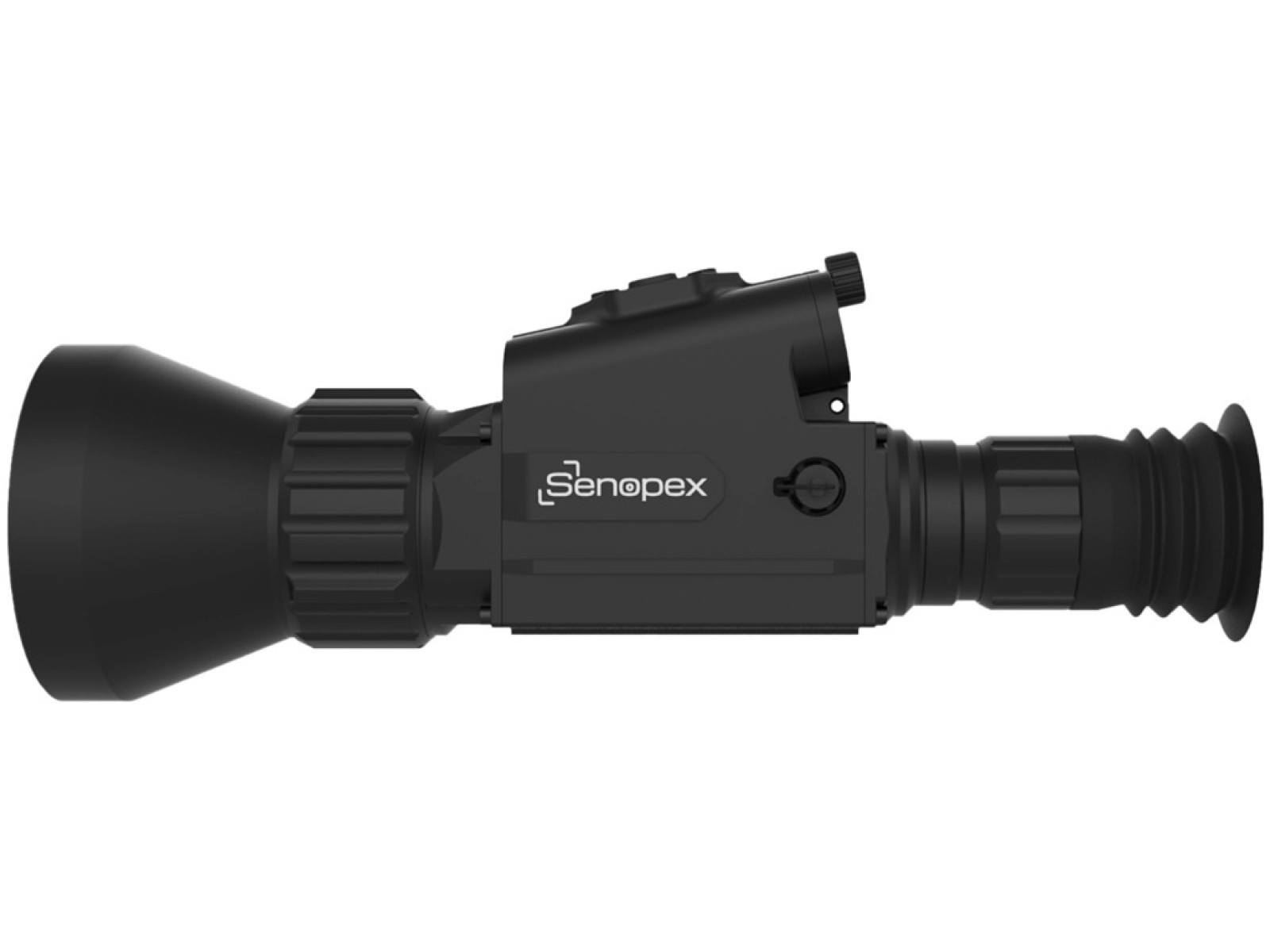

Senopex S7

The Dot S7 features a crisp 75mm f/1 objective lens focusing the available thermal radiation. The field of view on this thermal weapon sight is 5.9 by 4.4 degrees. It features a 8 times digital zoom to enlarge your subject.

Behind the lens of the Dot S7 you can find the (uncooled, 12 micrometer) 640 x 480 pixels thermal core refreshing the image at 50Hz. The thermal contrast (NETD) of this thermal weapon sight is <25mK and it's operating within the 8µm to 14µm infrared spectrum.

The physical dimensions of this thermal weapon sight read 285 x 90 x 110mm (lwh) weighing in at 913 grams. This device is rated IP67. It handles dust, shocks, water (splashes) and submersion under water. It's rated for operating in temperatures between -40°C and 60°C.

Lens   75 mm

F-ratio           1.0

Optical zoom           4 x

Digital zoom 8 x

FOV (h/v)       5.9 ° / 4.4 °

Thermal type           Uncooled

Sensor resolution (h/v)     640 pixels / 480 pixels

Pixel pitch    12 µm

Sensitivity     25 mK

Spectral range        8 µm / 14 µm

Display resolution (h/v)    1024 pixels / 768 pixels

Refresh rate 50 Hz

Image polarity         White, Detail, Assassin, Equator, Black, Edge, Red, Iron

Output screen color          Full color

Reticle details          Up to 7 Reticles
