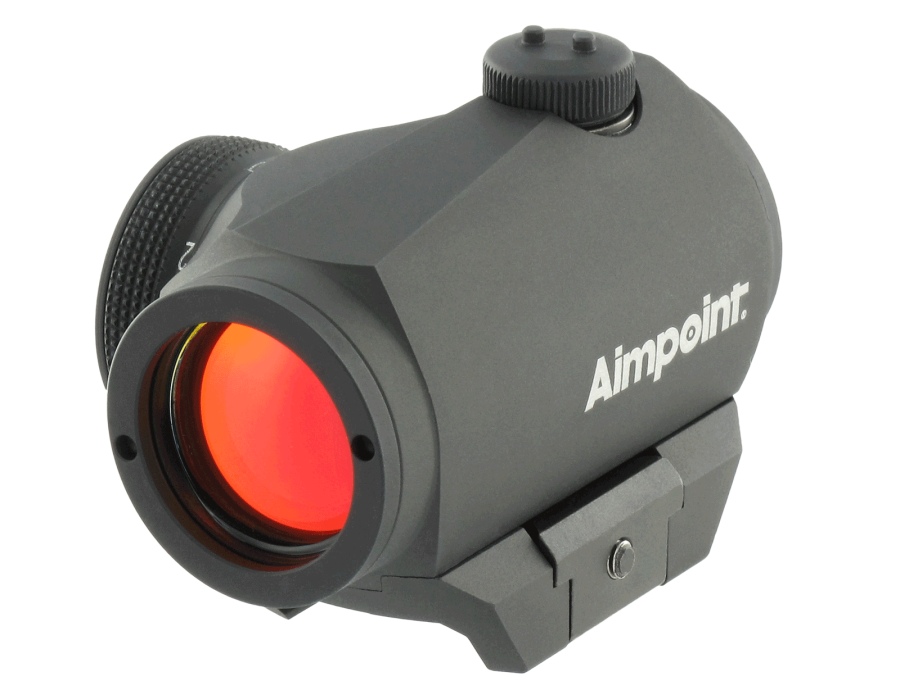

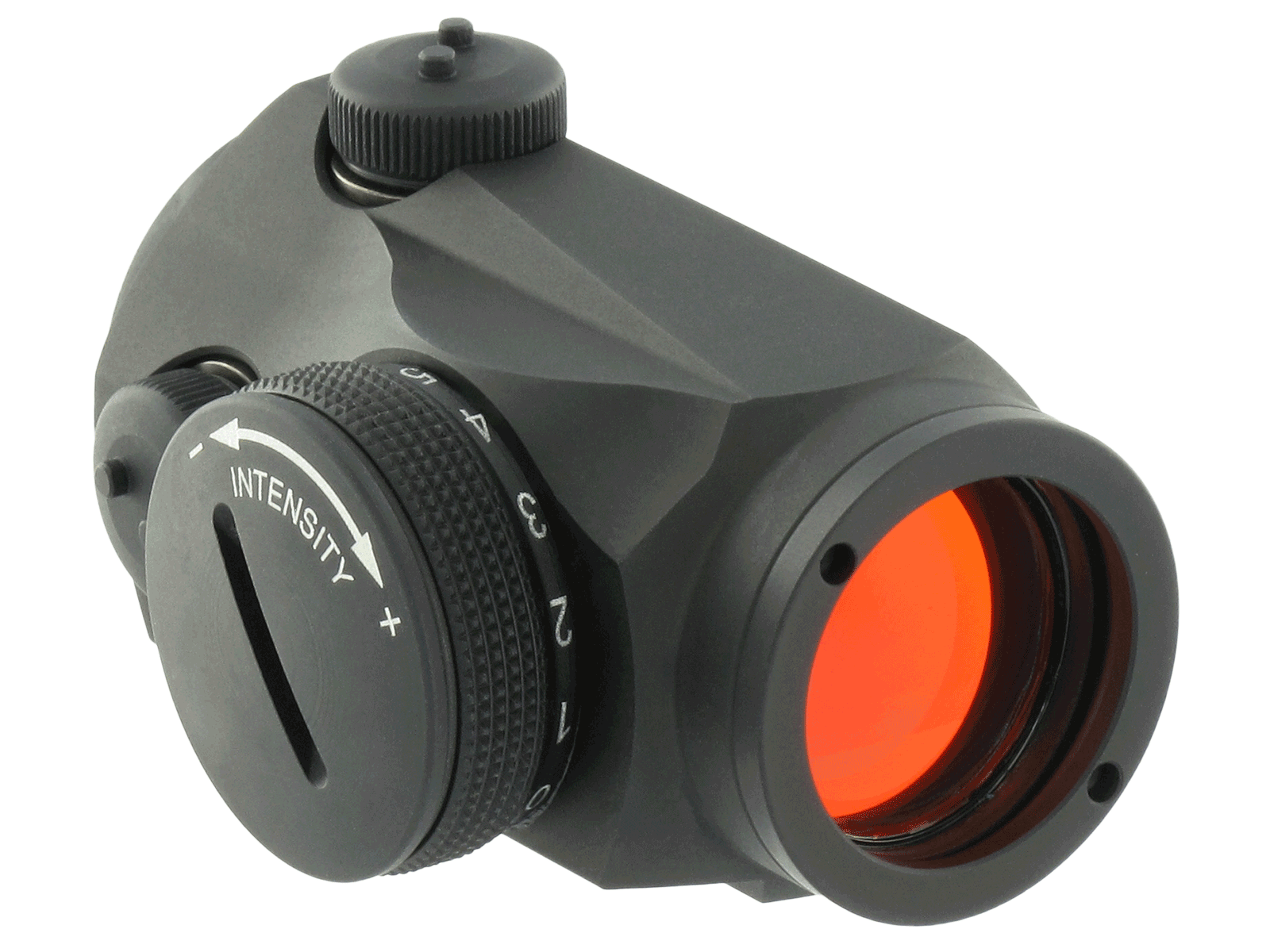

Aimpoint Micro H-1 2 MOA

The Aimpoint® Micro H-1 was designed with the hunter in mind. This small sight model is among the lightest red dot sights on the market and still tough enough to carry the Aimpoint name.
Since its introduction in 2007, the Micro H-1 has become a very popular hunting sight worldwide due to its size, light weight and robust build quality.

Unique features:

• Lightweight – 84 g without mount and 105 g with mount

• Integral Weaver-style base allows easy attachment

• ACET technology allows 50,000 hours of operation on one battery

• Available in 2 dot sizes (2 and 4 MOA)

• Fully waterproof

• Precision adjustment for windage and elevation: top of protective caps fits into holes on adjustment screws – no other tool required

• 12 settings for use in daylight and low light conditions

Optical Specifications:

• Operating principle: Reflex collimator sight with LED
• Optical magnification: 1x
• Aiming dot size: 2MOA
• Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx
• Dot color: Peak Wavelength: 655 ± 15 nm
• NVD compatible: No
• Optical coating: Anti-reflex, all surfaces and multi-layer.
• Clear aperture: 18 mm (.71 in)
• Eye relief: Unlimited

Power Source:

• Battery type: 3V lithium battery, type CR2032
• Battery life - Day time use: 50 000h (over 5 years of continuous use)
• Power intensity: 1 Off position and 12 daylight settings

Physical Specifications:

• Length sight only: 62 mm (2.4 in)
• Length conf: 69 mm (2.7 in)
• Width sight only: 41 mm (1.6 in)

• Height sight only: 36 mm (1.4 in)
• Height conf: 41 mm (1.6 in)
• Weight sight only (incl battery): 84 g ( 3.0 oz)
• Weight conf: 116 g (4.1 oz) incl lens covers and mount
• Housing material: High strength Aluminum

• Housing finish and color: Semi-matte black
• Material mount and spacer std conf: High strength Aluminum
• Surface treatment: Anodized, semi matte
• Height of optical axis - sight and mount: 18 mm (.7 in) over top surface of Picatinny/Weaver Rail

• Height of optical axis - sight, mount and low spacer: Spacer low: 48 mm (1.9 in) over top surface of Picatinny/Weaver Rail
• Height of optical axis - sight, mount and high spacer: Spacer high: 57 mm (2.2 in) over top surface of Picatinny/Weaver Rail
• Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = .4 in at 100 yds

Environmental Specifications:

• Temperature range operation: -30°C to +60°C (-20°F to +140°F)
• Temperature range storage: -51°C to +71°C (-60°F to +160°F)
• Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F)

• Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic

• Submersible: 5 m (15 ft)
• Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction).
• Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.
• Chemical resistance: Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents.
