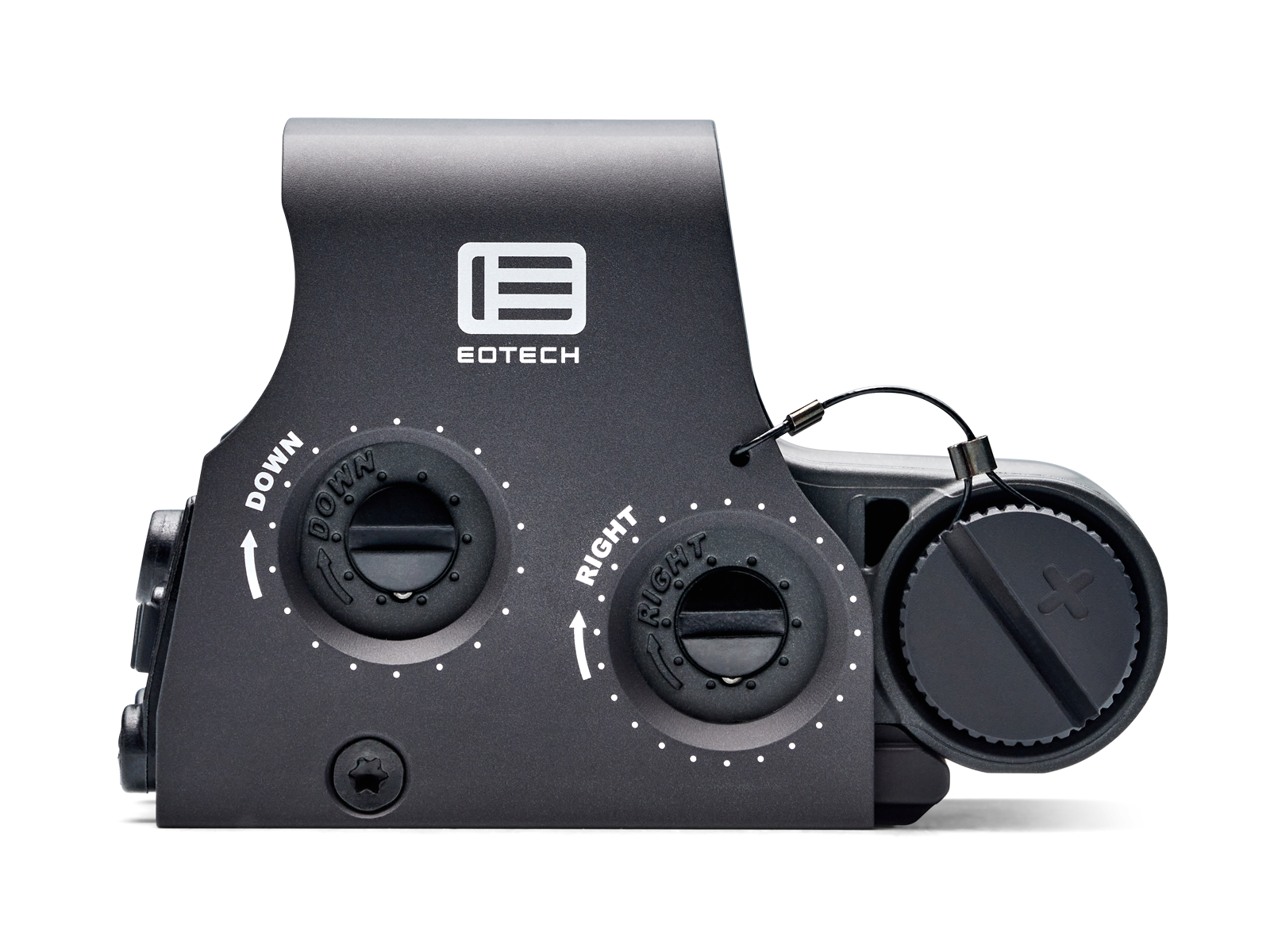

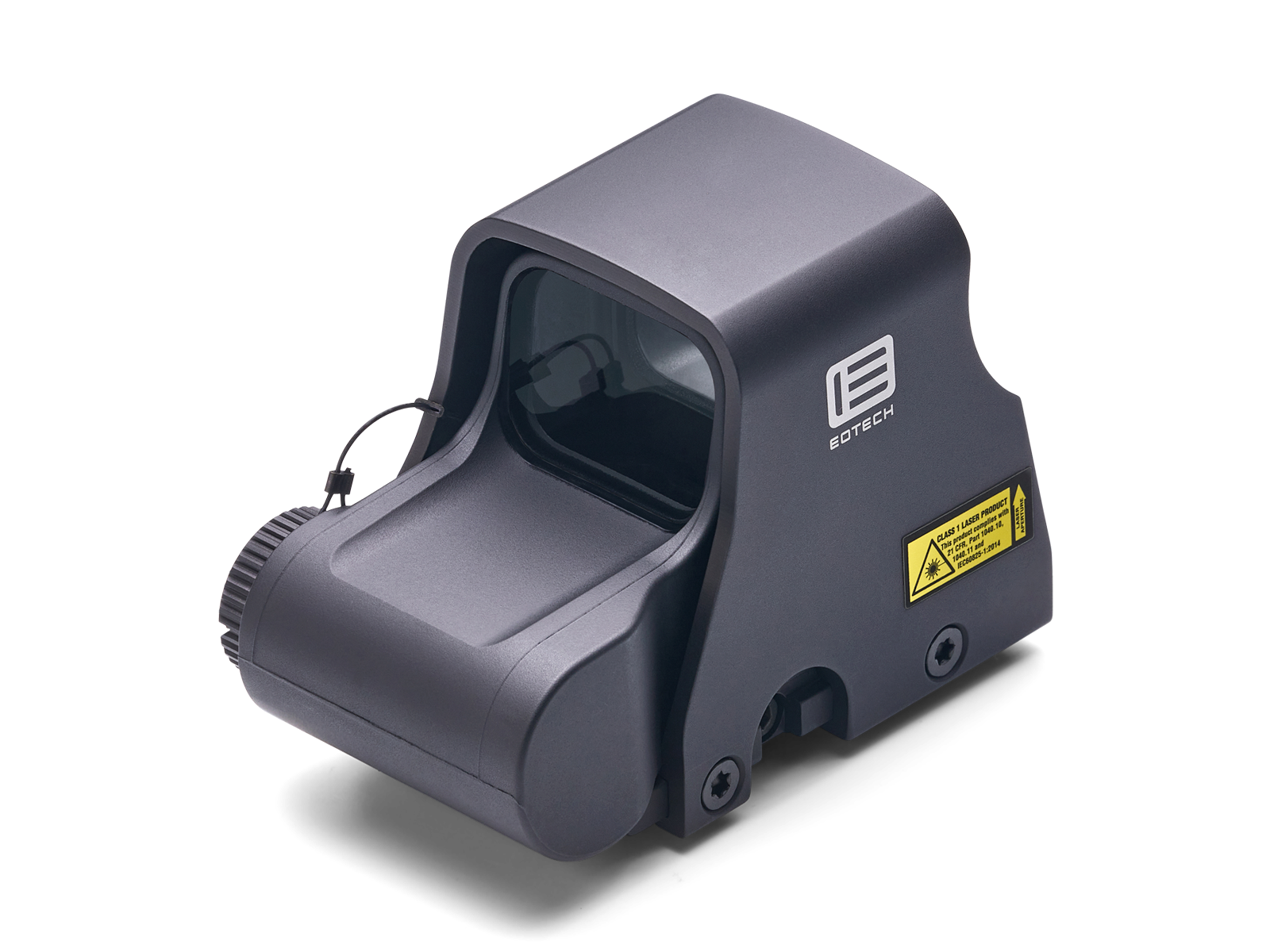

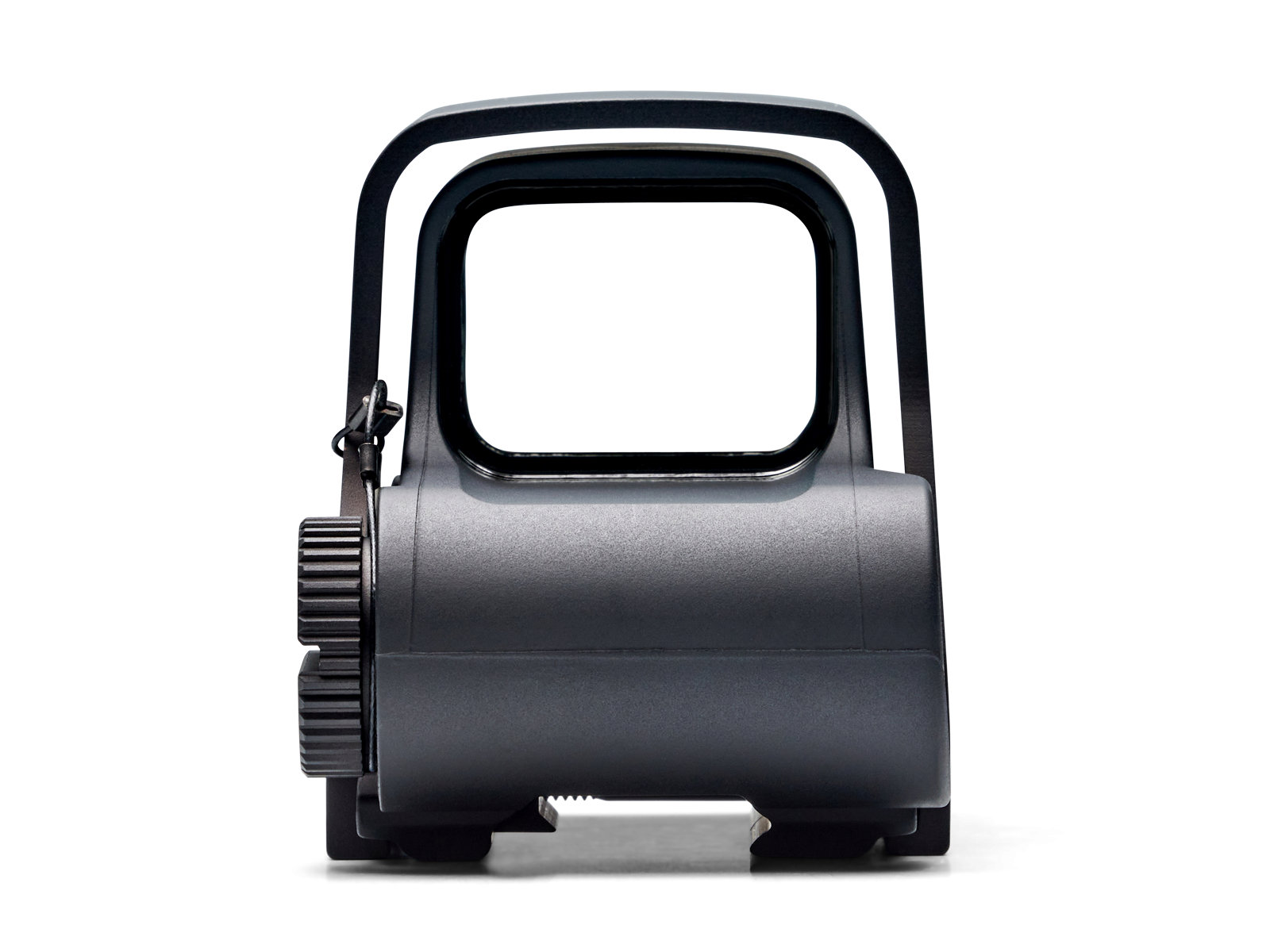

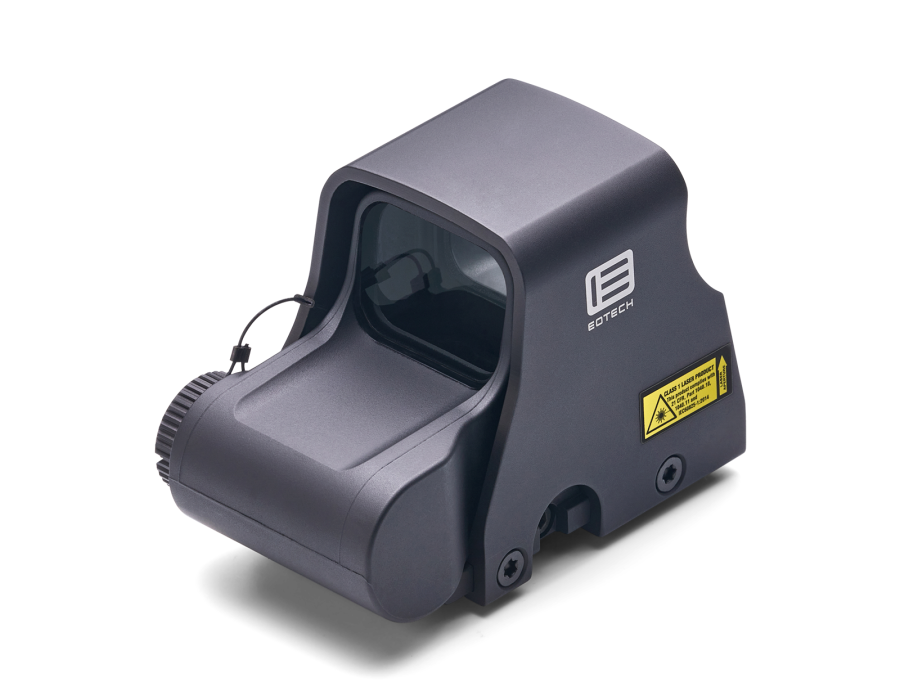

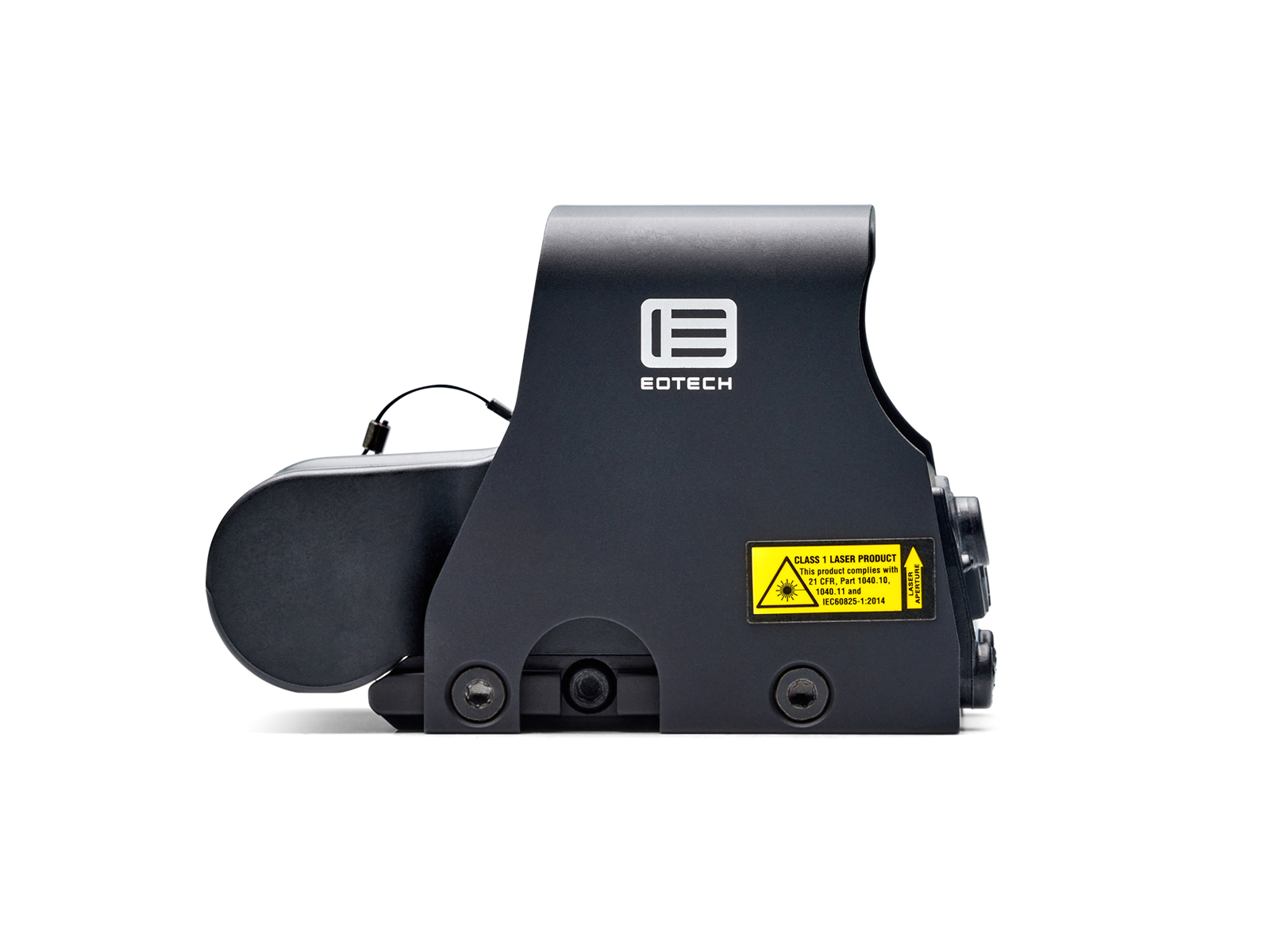

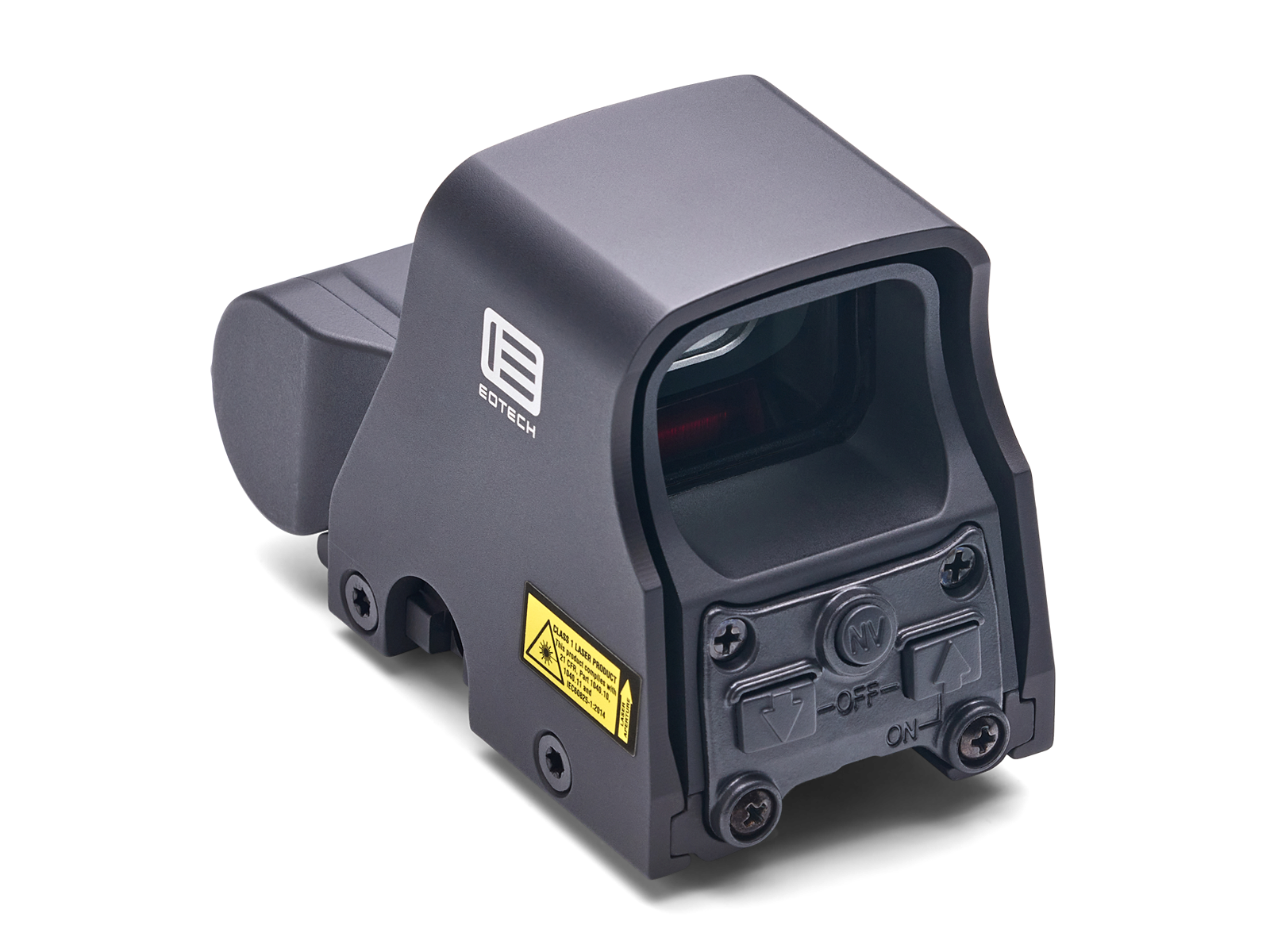

EOTech HWS XPS3-0

The HWS XPS3 is the shortest and lightest night-vision compatible HWS yet. Powered by a single transverse mounted CR123 lithium battery, the XPS provides additional rail space, leaving more room for rear iron sights, magnifiers or night-vision mount. An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.

Reticle Options: EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

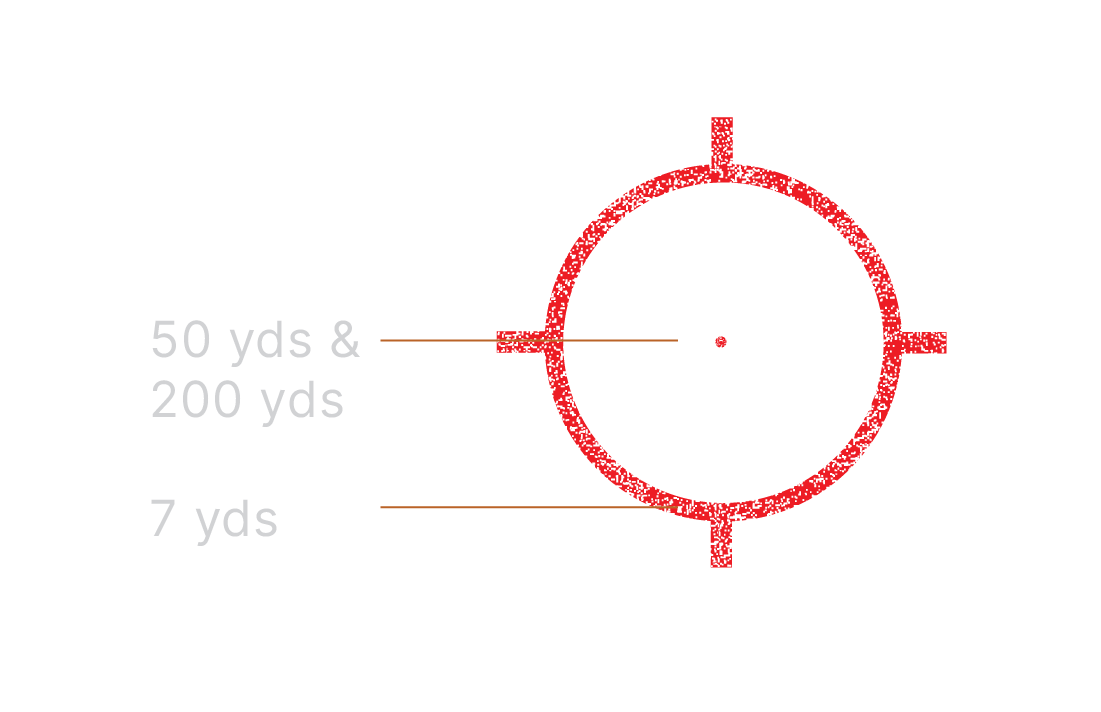

EOTech One Dot Reticle: Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

• Dimension: 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm) L x W x H
• Weight: 9oz (255g)
• Water Resistant: 33ft. (10m) depth
• Mount: 1" Weaver or MIL-STD-1913 rail
• Windage & Elevation Adjustment: 0.5 MOA per click
• Brightness: 20 daylight settings / 10 additional settings for Gen I through III+ night vision devices
• Power Source: 1x CR123 battery
• Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Made in USA


Included in the box: HWS XPS3 / Quick-Start Guide / Warranty Card / CR123 Battery / Protective Case

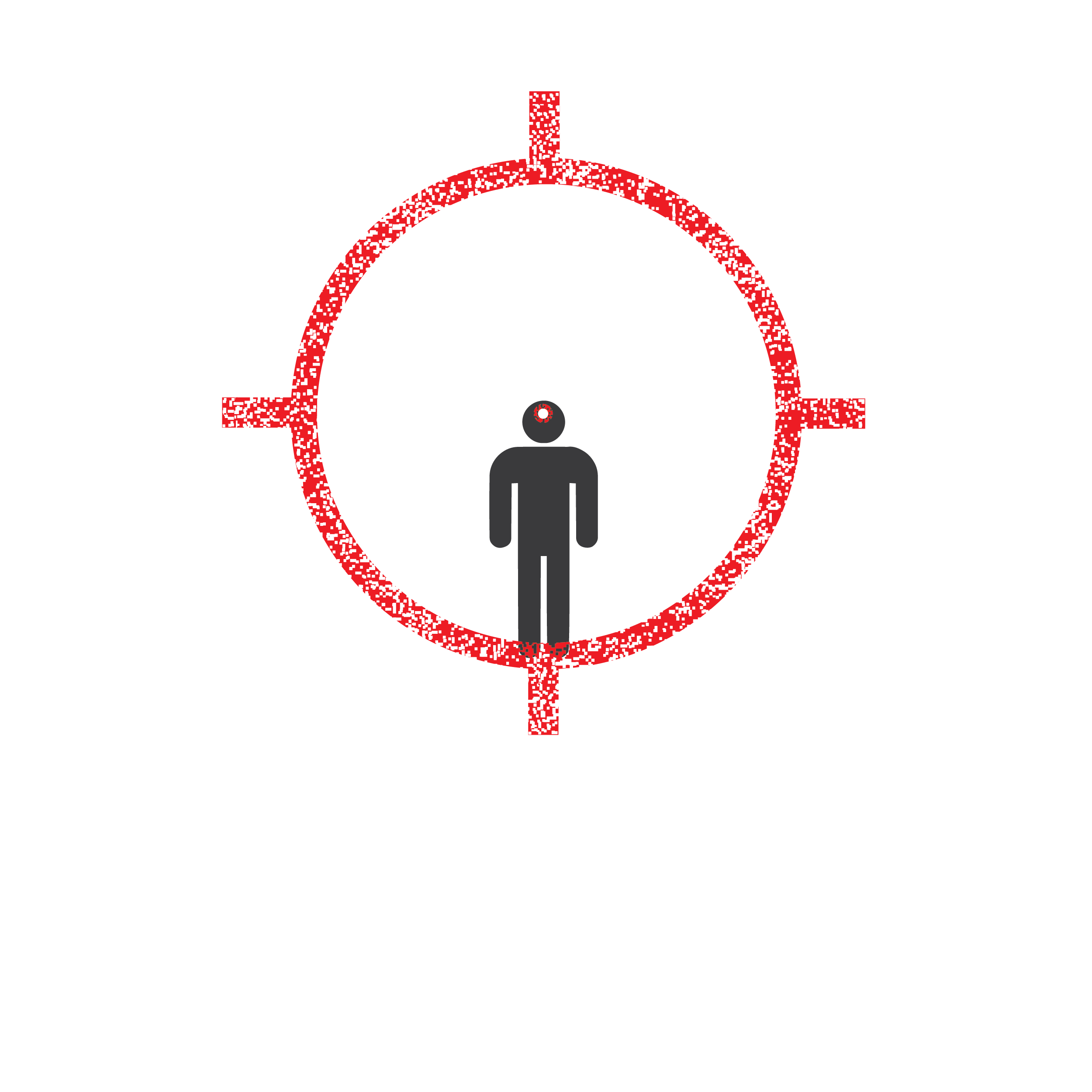

Range Estimation with Unmagnified HWS:

The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
